Piece Threaded Ball Valve

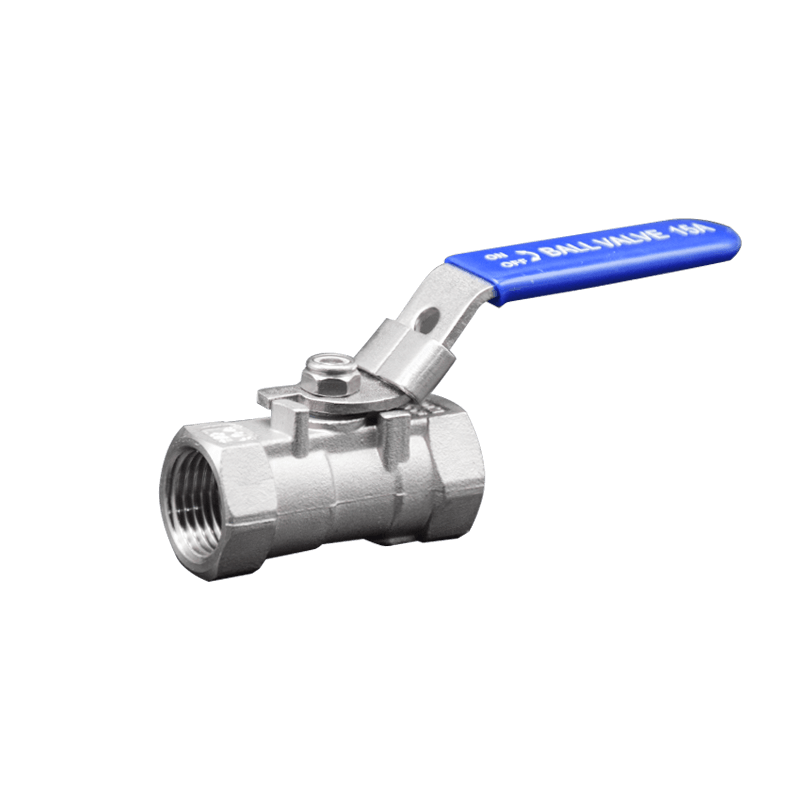

Leadtek's piece threaded ball valves included with 1pc screwed ball valve, 2pc screwed ball valve, 3pc screwed ball valve & 3 way screwed ball valves. (For a description of the different structures of these products, check out the links below)

https://www.leadtekfluid.com/ball-valve.html

All of these ball valves are manual operated, and could choose lock lever handle and some valves (such as 1 piece & 2 pieces) from 1/4" to 1", butterfly wing handle also acceptable.

  • Pressure: 1000PSI (1000WOG)
  • Thread Standard: NPT(ASME B1.20.1), BSPT/BSP (BS21), DIN2999/259, ISO228-1,JIS B0203, ISO7-1
  • Inspection: API598, En12266
  • Port: Full Bore & Reduced Bore

Normally one piece ball valve & three way ball valve in the reduced bore, two piece & three piece ball valve in full bore.

For our 2pc ball valve Korea type design, we both have reduced bore & full bore models.

  • Blow-out proof stem
  • Material: (Below is our normally material about ball valves)

SS304: Body, ball and stem in SS304, nuts, spring washer, bolts, etc in SS304, Only handle and lock in SS201, PTFE Seat.

SS316: Body, ball and stem in SS316, nuts, spring washer, bolts, etc in SS304, Only handle and lock in SS201, PTFE Seat

Certainly, in Different markets, the material of the part will be different, or we could change it according to your requirements.

  • OEM & ODM both acceptable.

1. The color of the handle sheath cover: Blue, red, yellow, green, etc. (According to your needs).

2. Print customer logo on handle sheath cover and laser marking heat number on ball valves' bodies.

3. In large quantities, we could accept open new model for you, and casting your logo or others as your required on valve bodies.
