Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore
Stainless Steel 2PC Thread Ball Valve Full Bore

Stainless Steel 2PC Thread Ball Valve Full Bore

Model NO.
LT-52A
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
36500 pieces / Day
Stock Time:
45 Days
Quantity:

What is Thread Ball Valve?

Ball Valve is one type of quarter-turn valve, is quite literally a ball placed in a passageway through which fluid flows. The ball has a hole through it, by which the valve opens and closes. The ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. Such as 1pc Ball Valve, 2pc Ball Valve, 3pc Ball Valve, 3 Way Ball Valve, etc. This valve is generally installed horizontally. Threaded Ball Valve is the type of ball valve with a thread connection. In addition, there are flanged ball valves, butt-welded ball valves, and socket-welded ball valves.

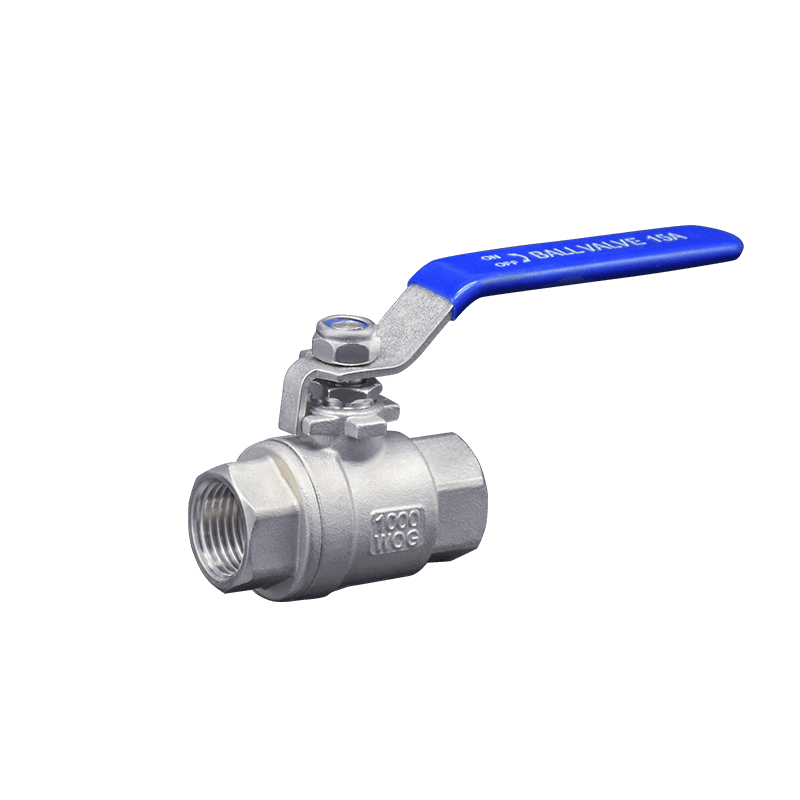

Stainless Steel 2pc Threaded Ball Valve

  • Size: 1/4"to 4"(DN8-DN100)-Full Bore
  • Max Pressure: 1000WOG
  • End connection: BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228
  • Investment Casting Body
  • Blow-out proof stem
  • Operation: Manual(Lock Lever Handle Avaliable)
  • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
  • OEM is acceptable and manufactures special requirements according to your drawings.
Certificates:ISO9001-2015,ISO14001-2015, CE & KC
Square:6600 M2
Casting:Investment Casting Foundry-Wax Lost Technology
CNC Machine:70 Sets (Still updating)
Pressure Testing Machine4 Sets

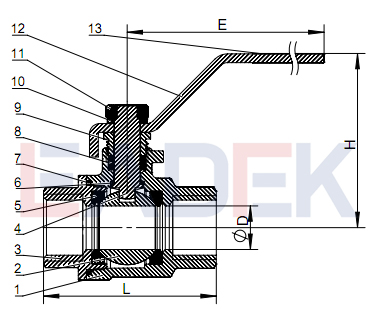

Size

DLH

E

1/4"11544590
3/8"12544590
1/2"155850100
3/4"206555100
1"257565113
1-1/4"32

82

75125
1-1/2"409482155
2"5011190155
2-1/2"65140120210
3"80190130220
4"100225155280

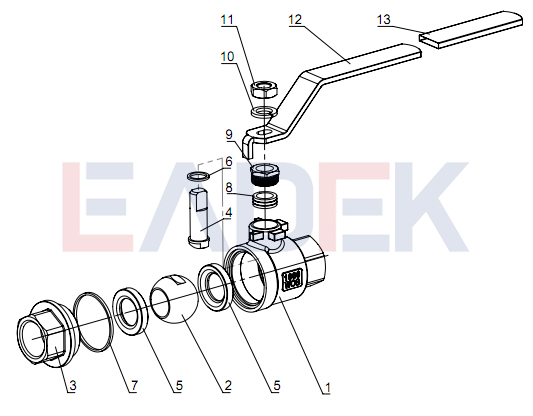

NOParts NameMaterial
1BodyCF8/CF8M/WCB
2BallF304/F316
3CapCF8/CF8M
4StemSS304/SS316
5SeatPTFE/RPTFE
6Thrust WasherPTFE
7GasketPTFE
8PackingPTFE
9Gland NutSS304/SS316
10Spring WasherSS304
11Handle NutA2-70
12HandleSS201/SS304
  • Model Number:LT-52A
  • Structure:Floating Ball Valve
  • Type of Port:Full Bore
  • Through Type:Straight Thought Type
  • Size:1/4" to 4"
  • Power:Manual
  • Material:Stainless Steel
  • Connection:Female Thread(Inside Thread)
  • Medium:Water; Oil; Gas; Other
  • Temperature:Normal Temperature
  • Application:Industrial Usage; Water Industrial Usage; Household Usage; Pharmaceutical industry
  • Packing:Cartons; Plywood Cases; Wooden Pallet; Standard Seaworthy Packing
  • Brand Name:EADEK/WELFLOW
  • Place of Origin:China
  • HS Code:8481804090
  • Free Samples:Yes
  • Certificates:ISO9001-2015; ISO4144-2015; CE; RoHS; KC
