What is Threaded Pipe Fittings?
Leadtek Manufacture Threaded Pipe Fittings widely used in water, oil, gas media pipeline.The connection end is threaded(BSPT,BSPP,NPT,DIN259/2999,ISO228 etc).Female(Inside Thread) & Male(Outside Threaded) all machined by CNC Machining. These Items including with Elbows, Tee, Socket, Reducing Nipple, Union, Bushing, Hose Nipple(King Nipple), Reducing Socket and so on.
Stainless Steel Union Elbow FF
- Size: 1/8"-2"(DN6-DN50)
- Max Pressure: 150PSI
- Standard: ISO 4144
- End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
|Certificates:||ISO9001-2015,ISO14001-2015, CE & KC|
|Casting:||Investment Casting Foundry-Wax Lost Technology|
|CNC Machine:||70 Sets (Still updating)|
|Pressure Testing Machine||4 Sets|

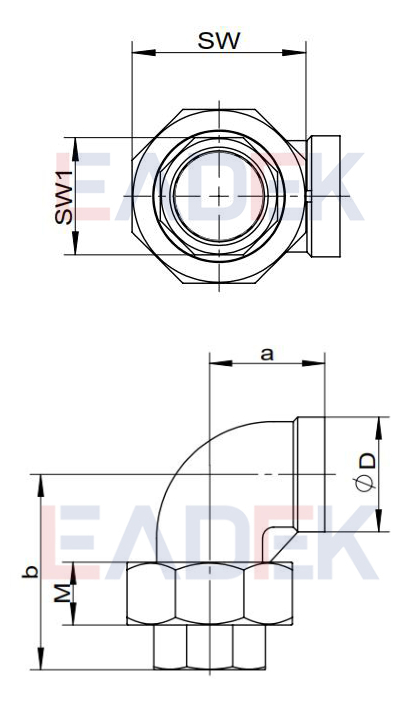

|DN||φD (mm)||a (mm)||b (mm)||M (mm)||SW (mm)||SW1 (mm)|
1. How to make sure the raw material is real material which we need?
Firstly, we have our own casting foundry. We control our products’ quality start from raw material. The proportion of fixed raw materials, professional operation process, and detection of spectrometer imported from Germany.
2. Can we laser marking our logo or others on the pipe fittings?
Yes, it is acceptable.
3. Can we require custom packaging, such as color boxes, etc?
Yes, certainly. It depends on how many quantities do you need. It also will increase the total cost.
4. Can we cast our logo on the valves or print the logo on the handle sheath cover?
Yes, the Casting logo on the valves, depends on quantities. Our suggestion is laser marking on it. Print the logo on the handle sheath cover, it is free to design for our customer.
5. Are samples available to be sent for free?
Almost Yes, it depends on the value of the products. There are thousands of our products with different products and sizes. You can contact us for a particular answer.
