Stainless Steel Tank Fittings
Stainless Steel Tank Fittings with NBR Gasket
LT-14B
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
Stainless Steel Tank Fittings
- Size: 1/2"-2"(DN15-DN50)
- Max Pressure: 150PSI
- Standard: ISO 4144
- End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

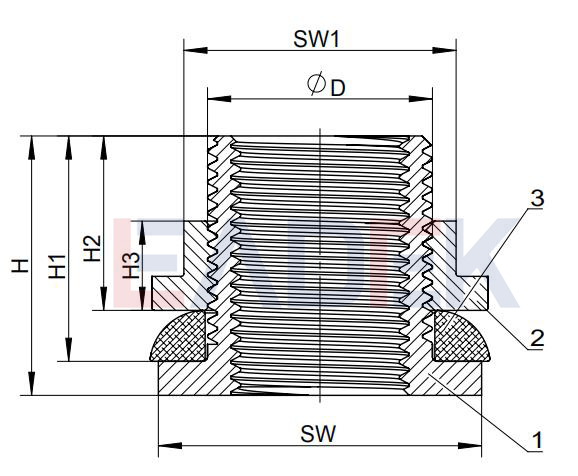

 | Size | DN | H | H1 | H2 | H3 | φD | SW | SW1 |
| 1/2" | 15 | 30.5 | 26.5 | 20.5 | 10.5 | 26.0 | 38.0 | 32.0 | |
| 3/4" | 20 | 30.0 | 25.0 | 19.0 | 11.0 | 32.0 | 45.0 | 38.0 | |
| 1" | 25 | 34.0 | 29.0 | 22.0 | 13.0 | 39.5 | 52.5 | 45.0 | |
| 1-1/4" | 32 | 34.0 | 29.0 | 22.0 | 13.0 | 48.5 | 62.0 | 54.0 | |
| 1-1/2" | 40 | 35.0 | 30.0 | 23.0 | 14.0 | 54.0 | 68.0 | 60.0 | |
| 2" | 50 | 37.0 | 31.5 | 24.5 | 15.5 | 66.5 | 81.0 | 72.5 |

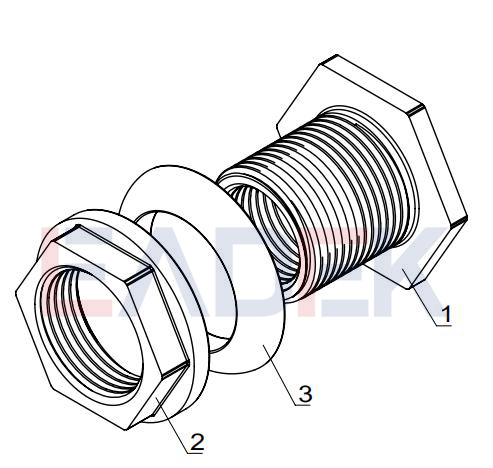

 | NO. | Parts | Material | ||
| 1 | Fitting | 304 | 316 | ||
| 2 | Nut | 304 | 316 | ||
| 3 | Gasket | EPDM/NBR | |||
