Stainless Steel Spring Vertical Check Valves

Stainless Steel Spring Vertical Check Valves

Model NO. LT-58B
  • Delivery:FOB
  • Minimum order quantity:100 pieces
  • Supply Ability:36500 pieces / Day
  • Stock Time:45 Days
  • What is Stainless Steel Check Valve?

    A Stainless Steel Check Valve, Stainless Steel Non-Return Valve or One-way Valve is a Valve that normally allows fluid(liquid or gas) to flow through it in only one direction.

    Stainless Steel Check Valve are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide application.

    Such as Swing Check Valve(Threaded & Flanged), Spring Vertical Check Valve(Threaded & Flanged), H71 Wafer Disco Check Valve, H74 Single Door Check Valve, Y-type Threaded Check Valve, 3 Piece Threaded Check Valve and so on.

    Stainless Steel Spring Vertical Check Valves - 2PC Design

    • Size: 1/4"to 4"(DN8-DN100)
    • Soft Seat & Metal Seat Both Available
    • Max Pressure: 200PSI
    • End connection: BS21(BSPT & BSP), ANSI B1.20.1(NPT), DIN259/2999,ISO 228
    • Various Thread Standards Available
    • Investment Casting Body
    • Design: API 608
    • Inspection: API 598, EN 12266
    • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
    • OEM is acceptable and manufactures special requirements according to your drawings.
    Certificates:ISO9001-2015,ISO14001-2015, CE & KC
    Square:6600 M2
    Casting:Investment Casting Foundry-Wax Lost Technology
    CNC Machine:70 Sets (Still updating)
    Pressure Testing Machine4 Sets

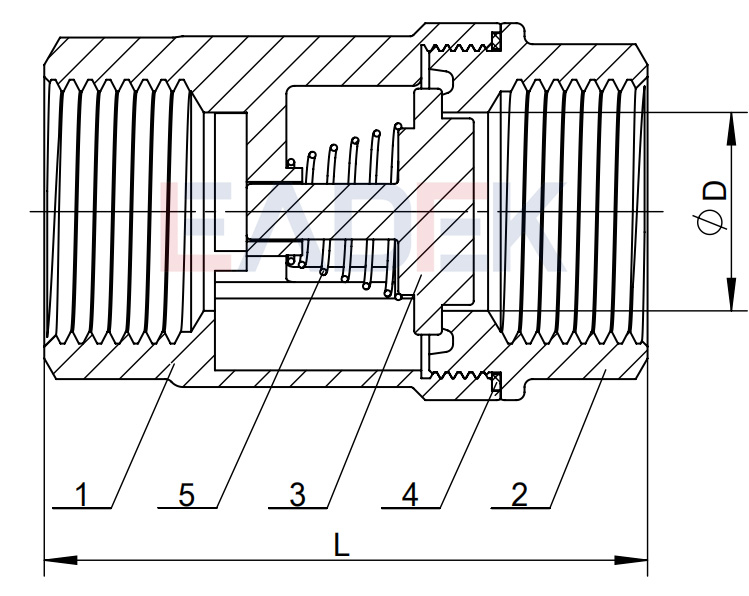

    Size

    DL
    1/4"10.554.0
    3/8"11.054.0
    1/2"13.057.0
    3/4"20.064.0
    1"25.075.0
    1-1/4"32.082.0
    1-1/2"38.093.0
    2"50.0100.0
    2-1/2"63.0120.0
    3"76.0140.0
    4"94.0158.0
    NOParts

    Material

    1BodyCF8/CF8M
    2CapCF8/CF8M
    3DiscCF8/CF8M
    3-1GasketCF8+ Vtion/ CF8M+Viton
    5GasketPTFE
    6GasketPTFE
