Outside Surface: Polished
What is Stainless Steel Pipe Nipples?
Leadtek Manufacture stainless steel pipe nipples widely used in water, oil, gas media pipeline. The connection end is threaded(PT, Rp, Rc, BSP, NPT, etc)
These Items including Coupling, Barrel Nipple, Welding Nipple, Half Coupling, Round Welding Hose Nipple, Round Hose Nipple Male Thread and so on.
1. All Processed from pipes (Tube)
2. Surface treatment: Pickling, Sandblasting & Polished.
3. Nominal Wall thickness: SCH20S, SCH40S, SCH80, etc.
4. Length: As standard required or according to customer requirements.

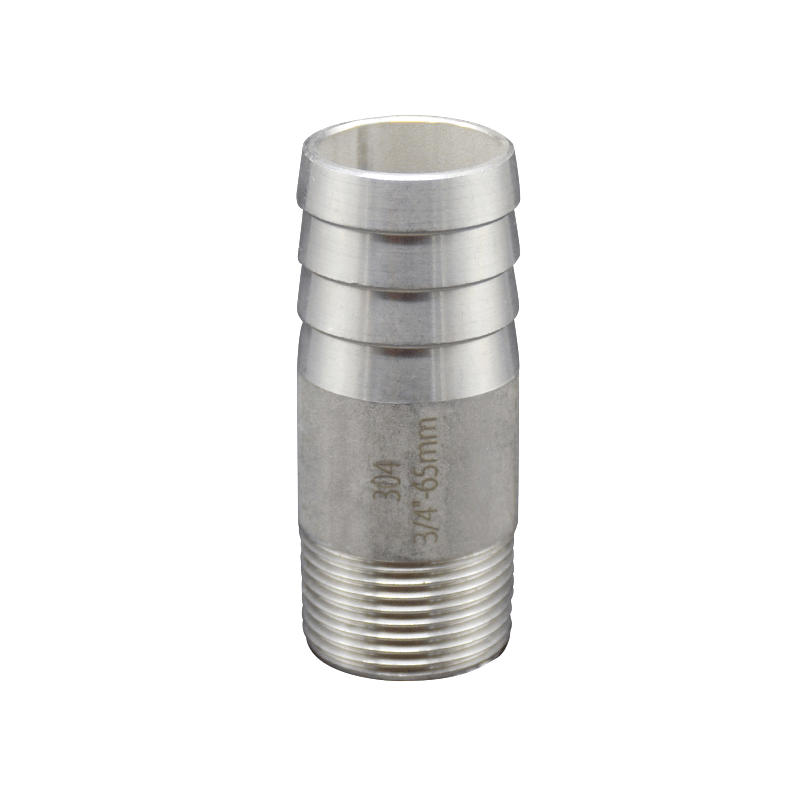

Stainless Steel Round Hose Nipple Male Thread
- Size: 1/8”-4”(DN6-DN100)
- End connection: Male Thread (PT, BSP) & Hose Tails
- Processed from Pipes (Tube)
- Material: 304/316
- Surface Treatment: Polish & Pickling
- OEM is acceptable and manufactures special requirements according to your drawings.
Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
Square: | 6600 M2 |
Casting: | Investment Casting Foundry-Wax Lost Technology |
CNC Machine: | 70 Sets (Still updating) |
Pressure Testing Machine | 4 Sets |

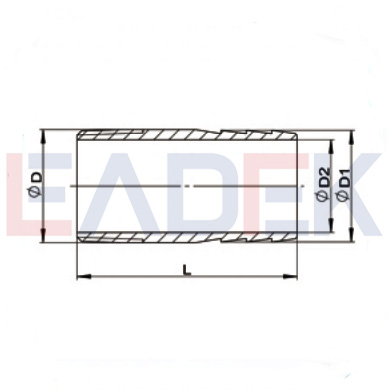

![]() | Size | DN | D (mm) | D1 (mm) | D2(mm) | L(mm) |
1/8" | 6 | 10.0 | 9.8 | 6.0 | 50.0 | |
1/4" | 8 | 14.0 | 13.8 | 9.0 | 50.0 | |
3/8" | 10 | 17.0 | 16.8 | 12.0 | 52.0 | |
1/2" | 15 | 21.3 | 21.0 | 16.3 | 56.0 | |
3/4" | 20 | 26.7 | 26.3 | 21.7 | 60.0 | |
1" | 25 | 33.4 | 33.0 | 27.4 | 65.0 | |
1-1/4" | 32 | 42.0 | 41.5 | 36.0 | 70.0 | |
1-1/2" | 40 | 48.0 | 47.5 | 42.0 | 72.0 | |
2" | 50 | 60.0 | 59.5 | 53.0 | 78.0 | |
2-1/2" | 65 | 76.0 | 75.5 | 68.0 | 85.0 | |
3" | 80 | 89.0 | 88.2 | 80.0 | 100.0 | |
4" | 100 | 114.0 | 113.0 | 104.0 | 110.0 |
