Stainless Steel Round Adaptor FM
LT-11A
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
Stainless Steel Round Adaptor FM
- Size: 1/4"-2"(DN15-DN50)
- Max Pressure: 150PSI
- Standard: ISO 4144
- End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

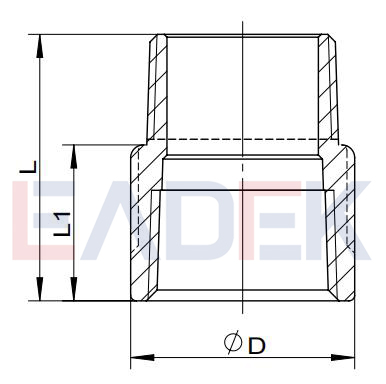

 | Size | DN | φD (mm) | L (mm) | L1 (mm) |
| 1/4" | 8 | 18.0 | 32.0 | 18.5 | |
| 3/8" | 10 | 21.5 | 34.0 | 19.5 | |
| 1/2" | 15 | 26.5 | 39.0 | 22.5 | |
| 3/4" | 20 | 32.0 | 42.0 | 24.5 | |
| 1" | 25 | 39.5 | 47.0 | 27.5 | |
| 1-1/4" | 32 | 48.5 | 51.0 | 30.0 | |
| 1-1/2" | 40 | 55.0 | 53.0 | 31.5 | |
| 2" | 50 | 67.0 | 61.0 | 36.0 |
