Stainless Steel Negative Hex Bushing FM
LT-11B
FOB
100 pieces
36500pieces / Day
45Day
Quantity:

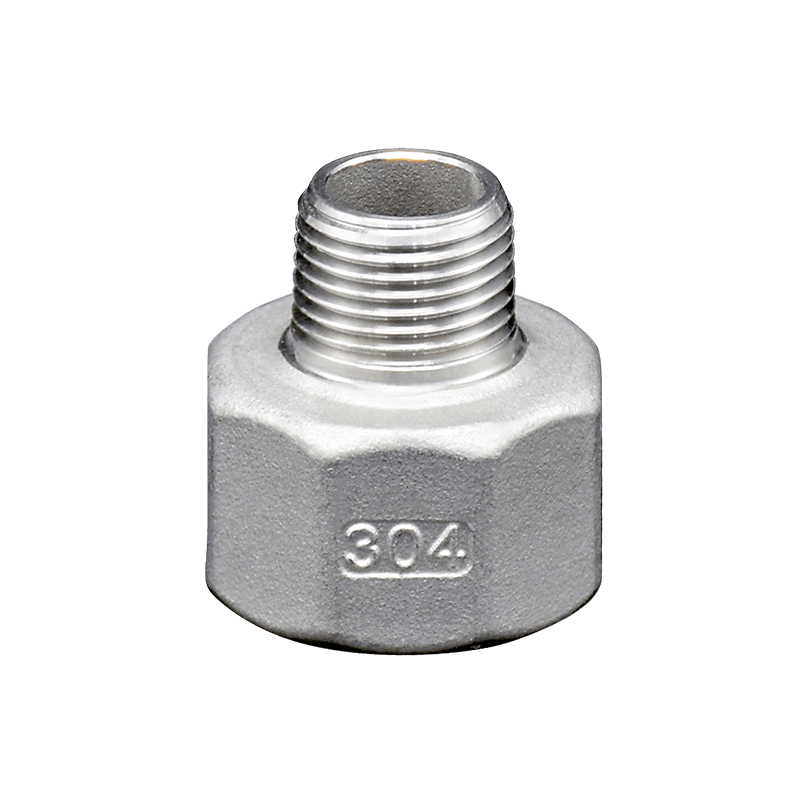

Stainless Steel Negative Hex Bushing FM
- Size: 1/4"X1/8"-2"X11/2"(DN8XDN6-DN50XDN40)
- Max Pressure: 150PSI
- Standard: ISO 4144
- End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

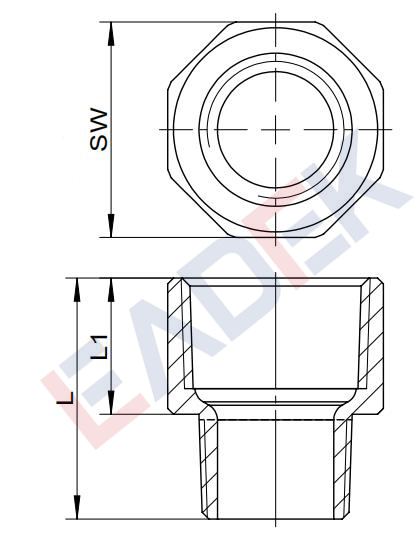

 | Size(MXF) | DN(MXF) | L (mm) | L1 (mm) | SW (mm) |
| 1/4"X1/8" | 8X6 | 29.0 | 17.0 | 17.0 | |
| 3/8"X1/8" | 10X6 | 30.0 | 18.0 | 21.0 | |
| 3/8"X1/4" | 10X8 | 32.5 | 18.0 | 21.0 | |
| 1/2"X1/4" | 15X8 | 35.5 | 21.0 | 25.0 | |
| 1/2"X3/8" | 15X10 | 36.5 | 21.0 | 25.0 | |
| 3/4"X1/4" | 20X8 | 37.0 | 22.5 | 31.0 | |
| 3/4"X3/8" | 20X10 | 38.0 | 22.5 | 31.0 | |
| 3/4"X1/2" | 20X15 | 40.0 | 22.5 | 31.0 | |
| 1"X1/4" | 25X8 | 38.5 | 24.0 | 38.0 | |
| 1"X3/8" | 25X10 | 39.5 | 24.0 | 38.0 | |
| 1"X1/2" | 25X15 | 41.5 | 24.0 | 38.0 | |
| 1"X3/4" | 25X20 | 42.5 | 24.0 | 38.0 | |
| 11/4"X1/2" | 32X15 | 43.5 | 26.0 | 47.0 | |
| 11/4"X3/4" | 32X20 | 44.5 | 26.0 | 47.0 | |
| 11/4"X1" | 32X25 | 46.5 | 26.0 | 47.0 | |
| 11/2"X1/2" | 40X15 | 44.5 | 27.0 | 53.0 | |
| 11/2"X3/4" | 40X20 | 45.5 | 27.0 | 53.0 | |
| 11/2"X1" | 40X25 | 47.5 | 27.0 | 53.0 | |
| 11/2"X11/4" | 40X32 | 49.0 | 27.0 | 53.0 | |
| 2"X1/2" | 50X15 | 48.5 | 31.0 | 65.0 | |
| 2"X3/4" | 50X20 | 49.5 | 31.0 | 65.0 | |
| 2"X1" | 50X25 | 51.5 | 31.0 | 65.0 | |
| 2X11/4" | 50X32 | 53.0 | 31.0 | 65.0 | |
| 2X11/2" | 50X40 | 53.5 | 31.0 | 65.0 |
