Stainless Steel MM Mini Ball Valve with Black Handle
Size: 1/8" to 1" (DN6-DN25)-Reduced Port
Max Pressure: PN63
Max Pressure: PN63
LT-54C
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
What is Mini Ball Valve?
Stainless Steel Mini Ball Valve lies in the name itself, it is always in mini size from 1/8"to 1".
Stainless Steel Mini Ball Valves always with the polished outside surface. It is including with FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve & MM Stainless Steel Mini Ball Valve in SS304/SS316 material.

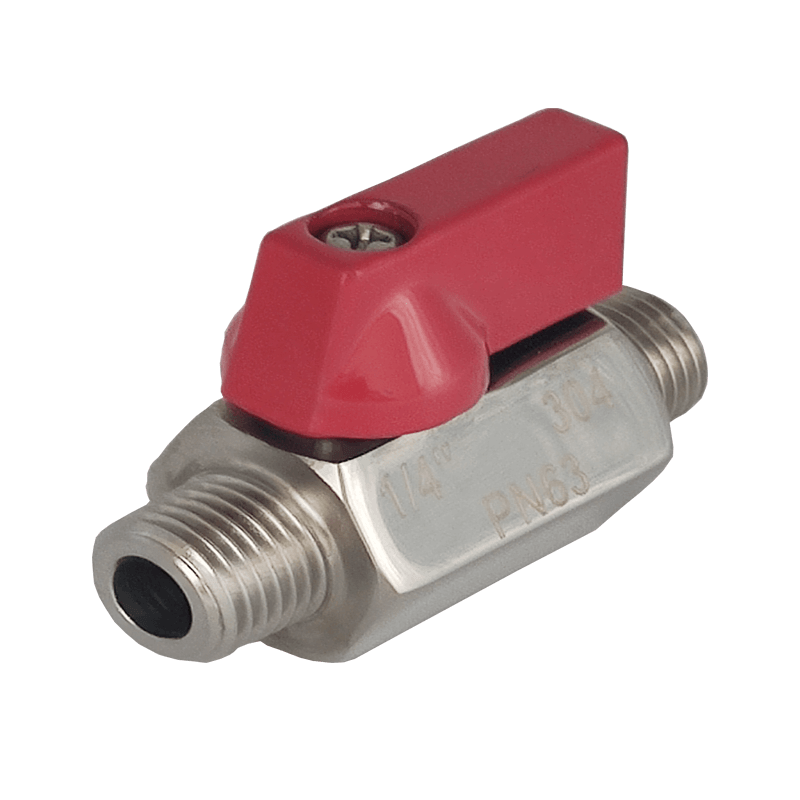

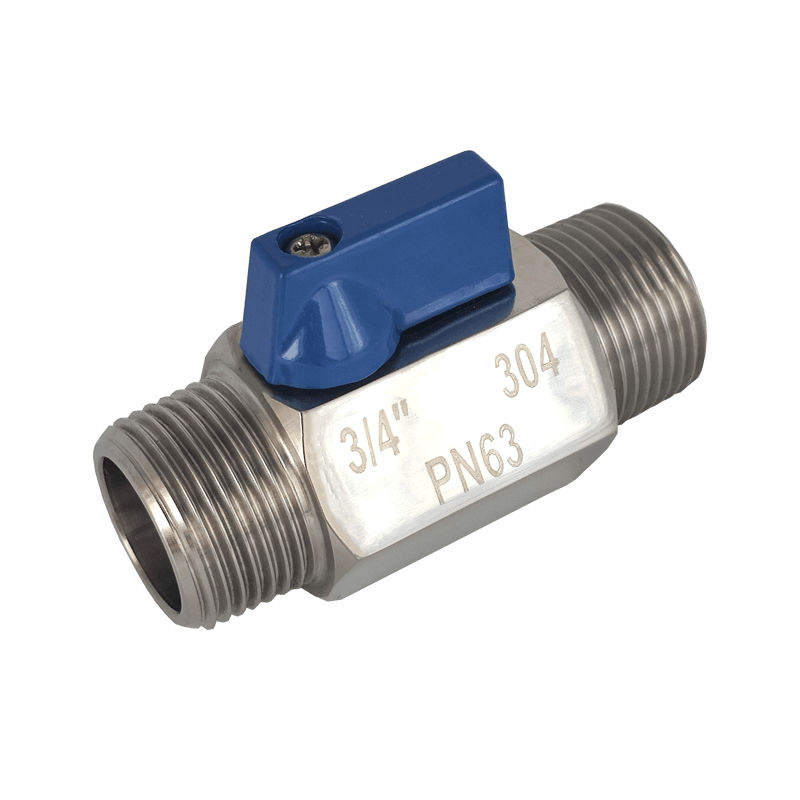

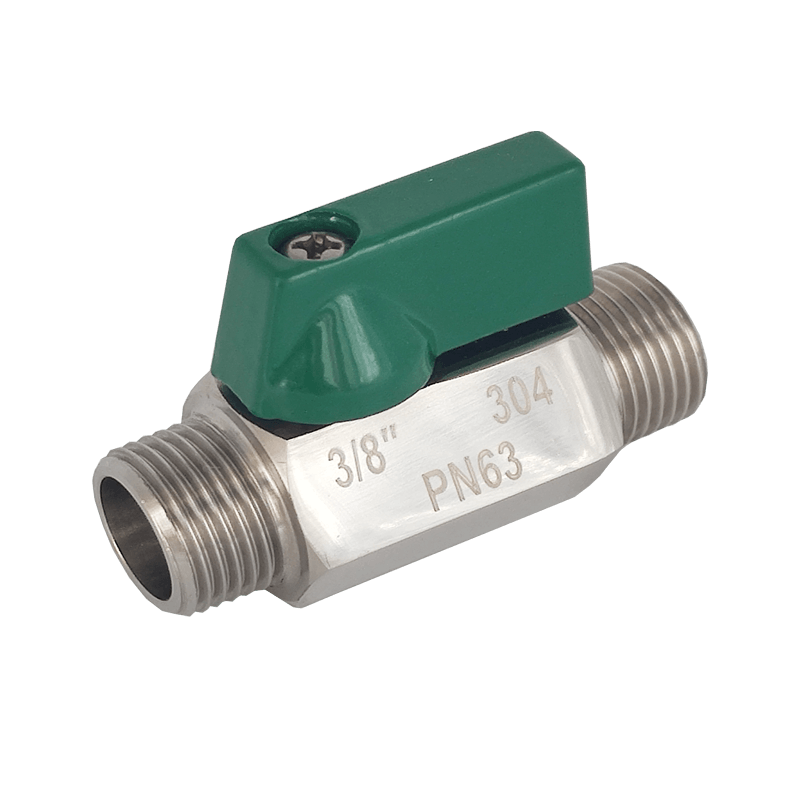

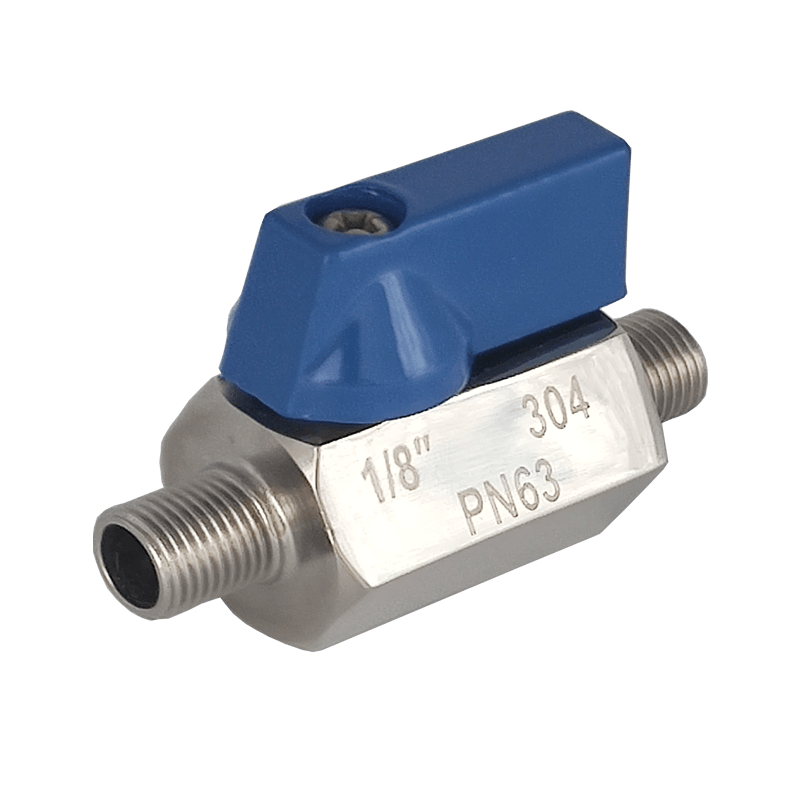

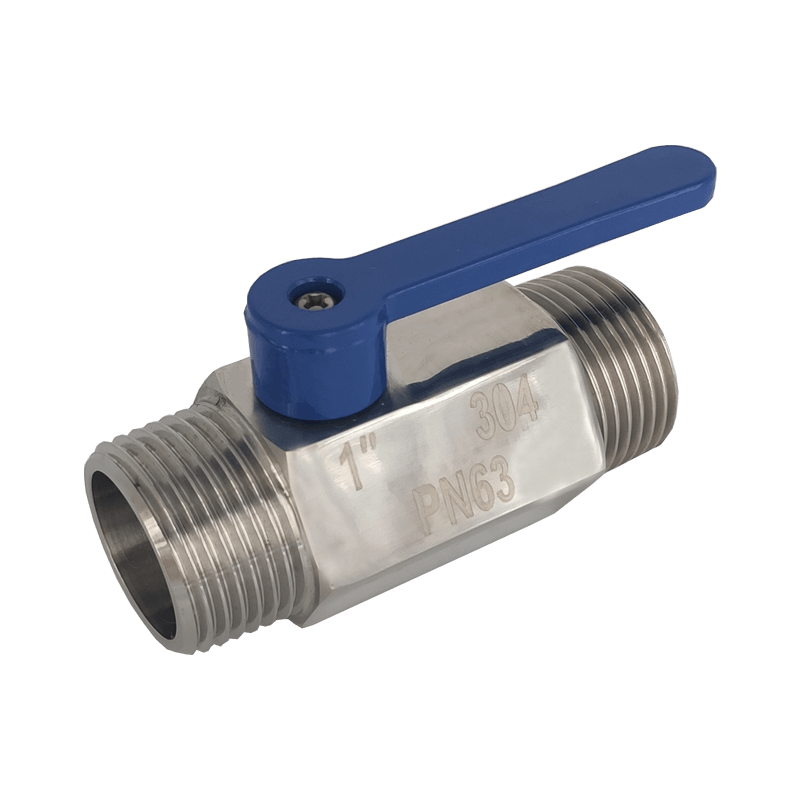

Stainless Steel MM Mini Ball Valve
- Size: 1/8"to 1"(DN6-DN25)-Reduced Port
- Max Pressure: PN63
- End connection: G Thread,BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Blow-out proof stem
- Operation: Manual
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- 100% 0.8Mpa air pressure testing
- OEM is acceptable and manufactures special requirements according to your drawings.

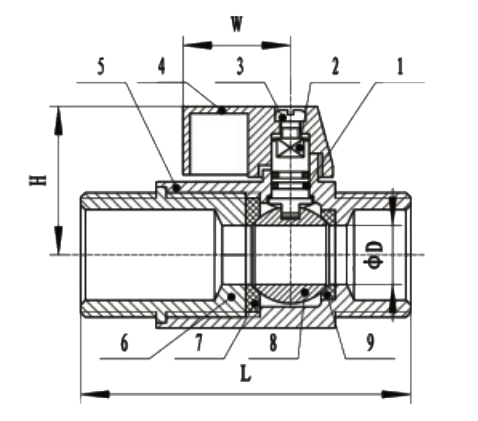

 | Size | D | H | W | L |
| 1/8" | 7 | 26.5 | 22.8 | 50 | |
| 1/4" | 7 | 26.5 | 22.8 | 50 | |
| 3/8" | 7 | 26.5 | 22.8 | 50 | |
| 1/2" | 9.2 | 28.3 | 22.8 | 58 | |
| 3/4" | 12.5 | 31.5 | 22.8 | 71.5 | |
| 1" | 15 | 34 | 22.8 | 83 |
 | ||
| NO | Parts Name | Material |
| 1 | O-Ring | NBR |
| 2 | Stem | SS304/SS316 |
| 3 | Bolt | SS304 |

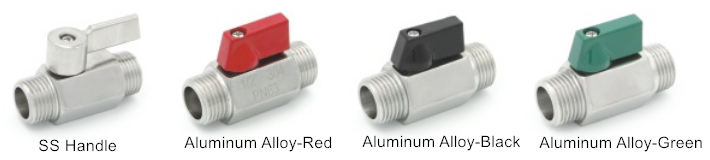

| 4 | Handle | Aluminum Alloy/CF8 |
| 5 | Body | CF8/CF8M |
| 6 | Cap | CF8/CF8M |
| 7 | A Ball Seat (a) | PTFE/RPTFE |
| 8 | Ball | F304/F316 |
| 9 | B Ball Seat (b) | PTFE/RPTFE |
