stainless steel ball valve

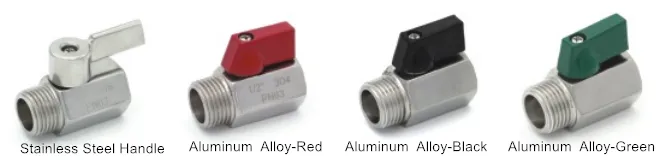

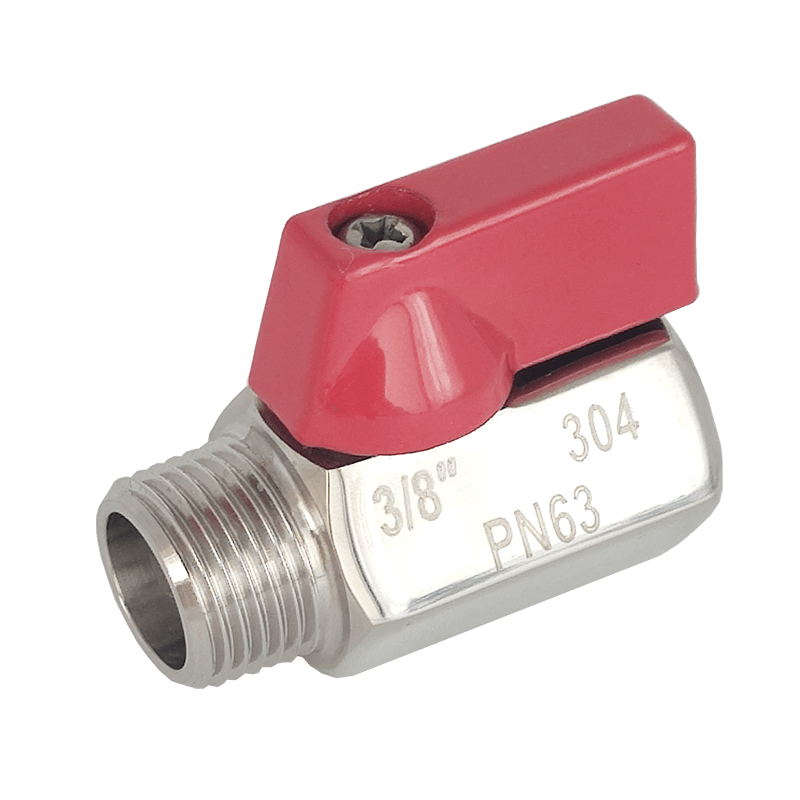

Stainless Steel MF Mini Ball Valve with Red Handle
Size: 1/8" to 1" (DN6-DN25)-Reduced Port
Max Pressure: PN63
LT-54B
FOB
100 pieces
36500pieces / Day
45Day
Quantity:

What is Mini Ball Valve?

Stainless Steel Mini Ball Valve lies in the name itself, it is always in mini size from 1/8"to 1".

Stainless Steel Mini Ball Valves always with the polished outside surface. It is including with FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve & MM Stainless Steel Mini Ball Valve in SS304/SS316 material.

Stainless Steel MF Mini Ball Valve

  • Size: 1/8"to 1"(DN6-DN25)-Reduced Port
  • Max Pressure: PN63
  • End connection: G Thread,BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228
  • Investment Casting Body
  • Blow-out proof stem
  • Operation: Manual
  • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
  • 100% 0.8Mpa air pressure testing
  • OEM is acceptable and manufactures special requirements according to your drawings.

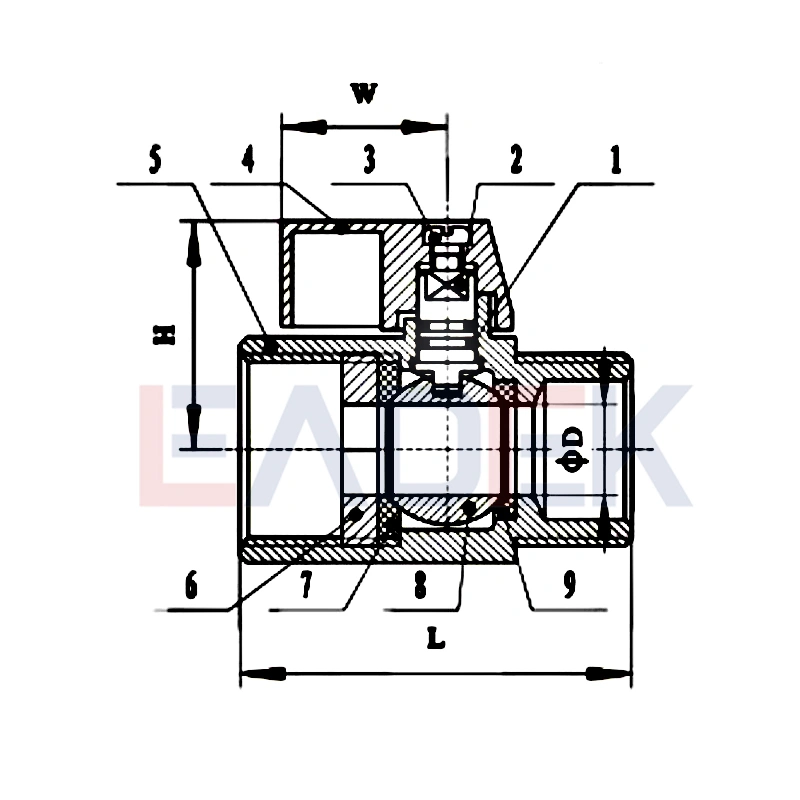

Size

DHW

L

1/8"726.522.840
1/4"726.522.840
3/8"726.522.840
1/2"9.228.322.846
3/4"12.531.522.854
1"153422.865

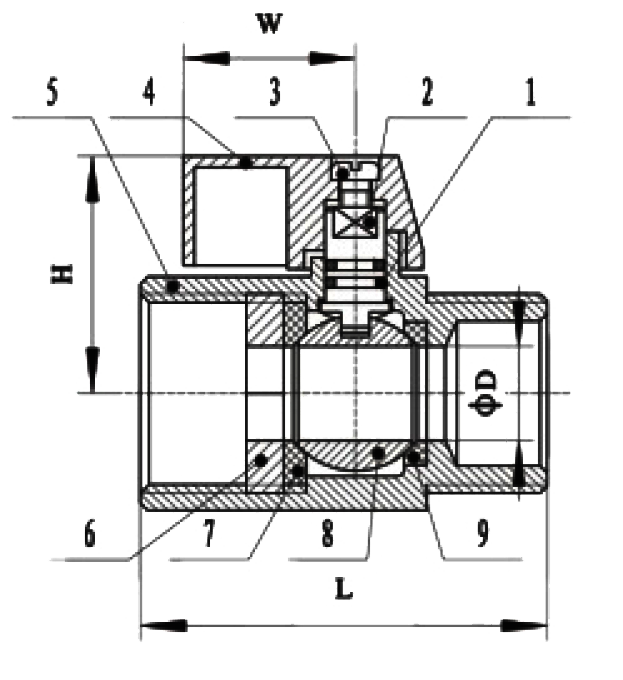

NOParts NameMaterial
1O-RingNBR
2StemSS304/SS316
3BoltSS304
4HandleAluminum Alloy/CF8
5BodyCF8/CF8M
6CapCF8/CF8M
7A Ball Seat (a)PTFE/RPTFE
8BallF304/F316
9B Ball Seat (b)PTFE/RPTFE
