Stainless Steel Hex Bushing MF

Stainless Steel Hex Bushing MF

• Size: 1/4"x1/8"-4"x3"(DN8xDN6-DN100xDN80)
• Max Pressure: 150PSI
• Standard: ISO 4144
• End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
• Investment Casting Body
• Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
• OEM is acceptable and manufactures special requirements according to your drawings.

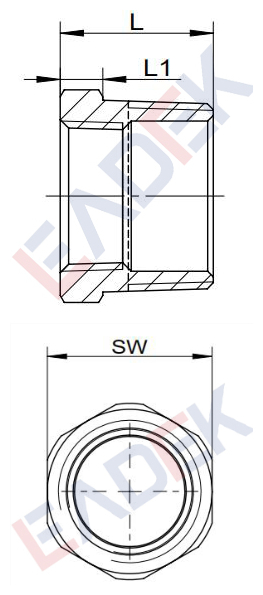

	Size		DN	L (mm)	L1 (mm)	SW (mm)
	T1	T2
	1/4"	1/8"	8x6	19.5	6.0	15.0
	3/8"	1/8"	10x6	21.0	6.5	18.0
	3/8"	1/4"	10x8	21.0	6.5	18.0
	1/2"	1/8"	15x6	23.0	6.5	22.0
	1/2"	1/4"	15x8	23.0	6.5	22.0
	1/2"	3/8"	15x10	23.0	6.5	22.0
	3/4"	1/8"	20x6	24.5	7.0	28.0
	3/4"	1/4"	20x8	24.5	7.0	28.0
	3/4"	3/8"	20x10	24.5	7.0	28.0
	3/4"	1/2"	20x15	24.5	7.0	28.0
	1"	1/8"	25x6	27.0	7.5	35.0
	1"	1/4"	25x8	27.0	7.5	35.0
	1"	3/8"	25x10	27.0	7.5	35.0
	1"	1/2"	25x15	27.0	7.5	35.0
	1"	3/4"	25x20	27.0	7.5	35.0
	1-1/4"	1/4"	32x8	29.0	8.0	44.0
	1-1/4"	3/8"	32x10	29.0	8.0	44.0
	1-1/4"	1/2"	32x15	29.0	8.0	44.0
	1-1/4"	3/4"	32x20	29.0	8.0	44.0
	1-1/4"	1"	32x25	29.0	8.0	44.0
	1-1/2"	1/4"	40x8	30.0	8.5	50.0
	1-1/2"	3/8"	40x10	30.0	8.5	50.0
	1-1/2"	1/2"	40x15	30.0	8.5	50.0
	1-1/2"	3/4"	40x20	30.0	8.5	50.0
	1-1/2"	1"	40x25	30.0	8.5	50.0
	1-1/2"	1-1/4"	40x32	30.0	8.5	50.0
	2"	1/4"	50x8	34.0	9.0	62.0
	2"	3/8"	50x10	34.0	9.0	62.0
	2"	1/2"	50x15	34.0	9.0	62.0
	2"	3/4"	50x20	34.0	9.0	62.0
	2"	1"	50x25	34.0	9.0	62.0
	2"	1-1/4"	50x32	34.0	9.0	62.0
	2"	1-1/2"	50x40	34.0	9.0	62.0
	2-1/2"	1/2"	65x15	38.5	10.5	78.0
	2-1/2"	3/4"	65x20	38.5	10.5	78.0
	2-1/2"	1"	65x25	38.5	10.5	78.0
	2-1/2"	1-1/4"	65x32	38.5	10.5	78.0
	2-1/2"	1-1/2"	65x40	38.5	10.5	78.0
	2-1/2"	2"	65x50	38.5	10.5	78.0
	3"	1"	80x25	42.5	11.5	91.0
	3"	1-1/4"	80x32	42.5	11.5	91.0
	3"	1-1/2"	80x40	42.5	11.5	91.0
	3"	2"	80x50	42.5	11.5	91.0
	3"	2-1/2"	80x65	42.5	11.5	91.0
	4"	1"	100x25	49.5	12.5	117.0
	4"	1-1/4"	100x32	49.5	12.5	117.0
	4"	1-1/2"	100x40	49.5	12.5	117.0
	4"	2"	100x50	49.5	12.5	117.0
	4"	2-1/2"	100x65	49.5	12.5	117.0
	4"	3"	100x80	49.5	12.5	117.0
