Model NO.
LT-54A
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
36500 pieces / Day
Stock Time:
45 Days
Quantity:

What is Mini Ball Valve?

Stainless Steel Mini Ball Valve lies in the name itself, it is always in mini size from 1/8"to 1".

Stainless Steel Mini Ball Valves always with the polished outside surface. It is including with FF Stainless Steel Mini Ball Valve, MF Stainless Steel Mini Ball Valve & MM Stainless Steel Mini Ball Valve in SS304/SS316 material.

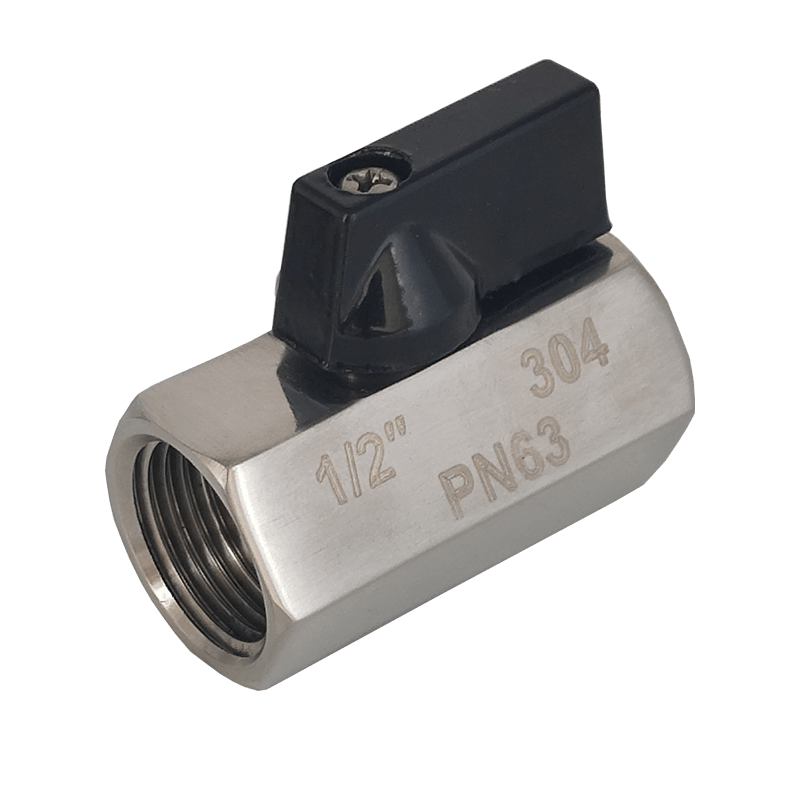

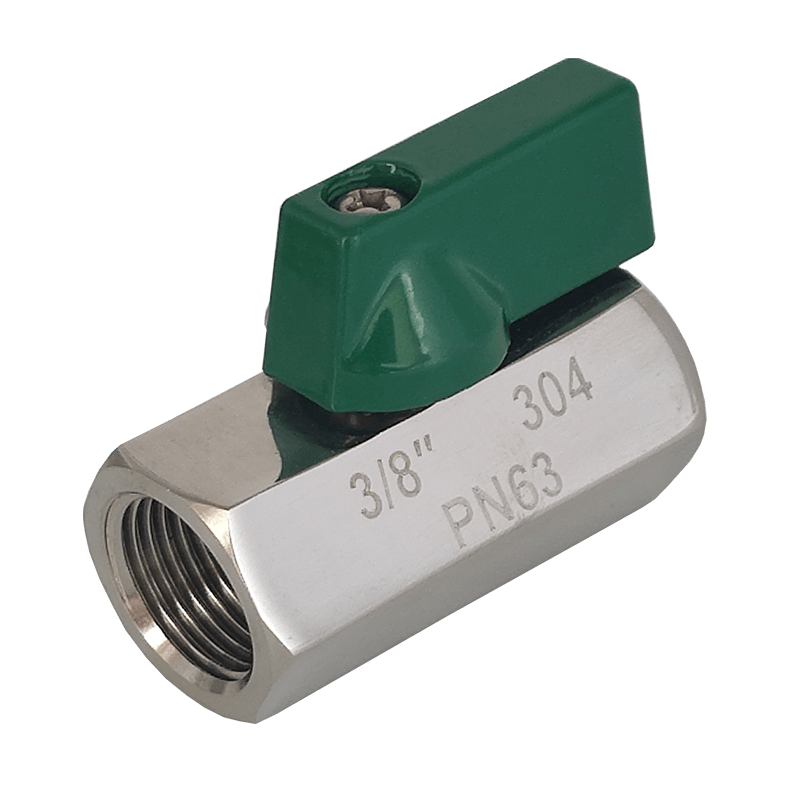

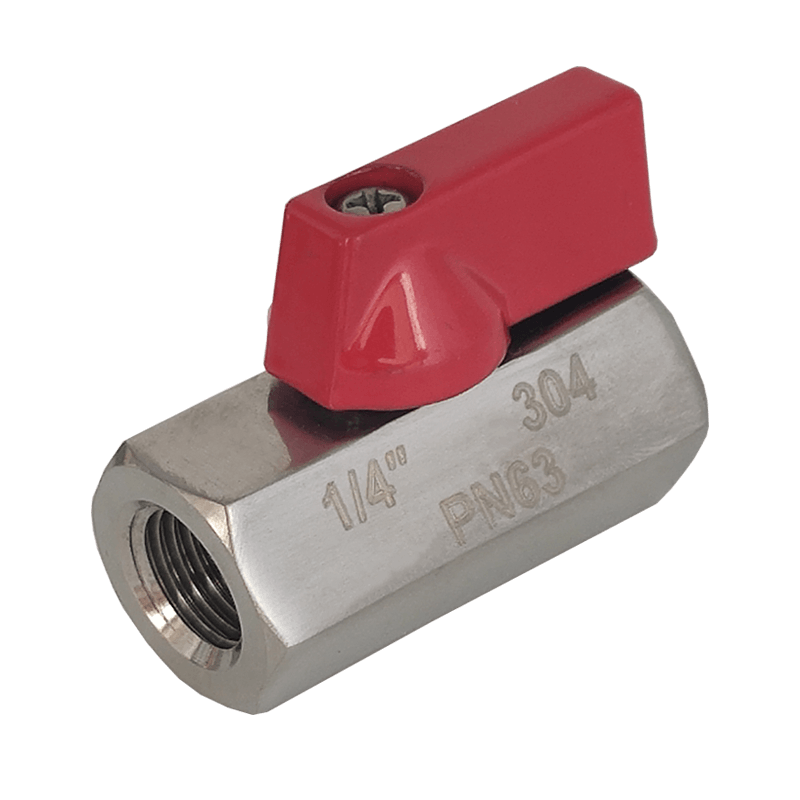

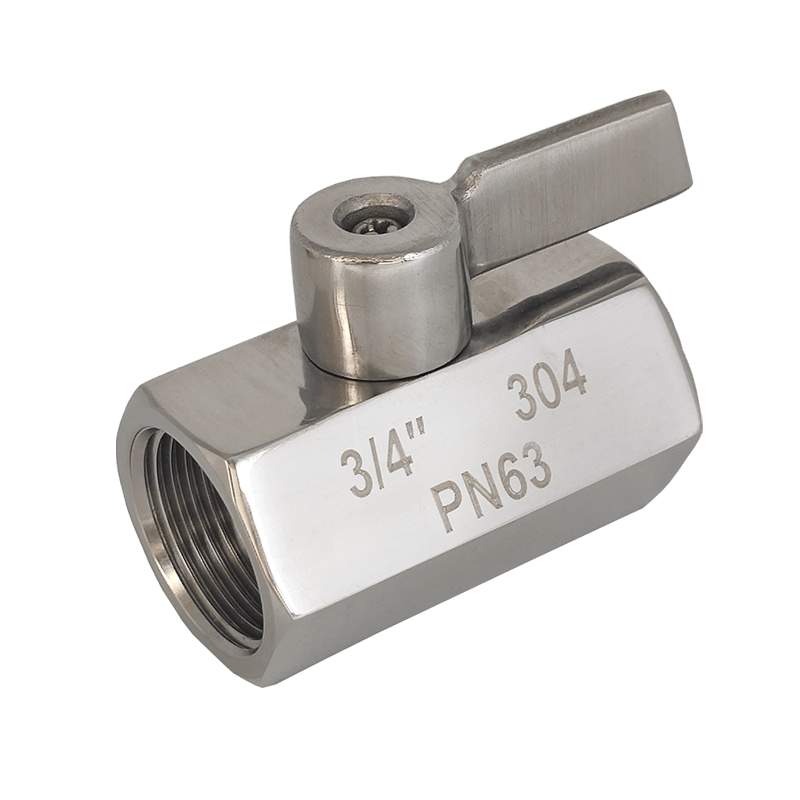

Stainless Steel FF Mini Ball Valve

  • Size: 1/8"to 1"(DN6-DN25)-Reduced Port
  • Max Pressure: PN63
  • End connection: G Thread,BS21(BSPT & BSP), ANSI B2.1(NPT), DIN259/2999,ISO 228
  • Investment Casting Body
  • Blow-out proof stem
  • Operation: Manual
  • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
  • 100% 0.8Mpa air pressure testing
  • OEM is acceptable and manufactures special requirements according to your drawings.
Certificates:ISO9001-2015,ISO14001-2015, CE & KC
Square:6600 M2
Casting:Investment Casting Foundry-Wax Lost Technology
CNC Machine:70 Sets (Still updating)
Pressure Testing Machine4 Sets

Size

DHW

L

1/8"726.522.842
1/4"726.522.842
3/8"726.522.842
1/2"9.228.322.846
3/4"12.531.522.854
1"153422.865

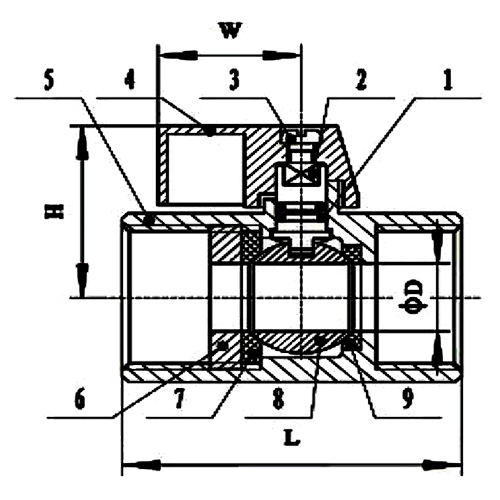

NOParts NameMaterial
1O-RingNBR
2StemSS304/SS316
3BoltSS304

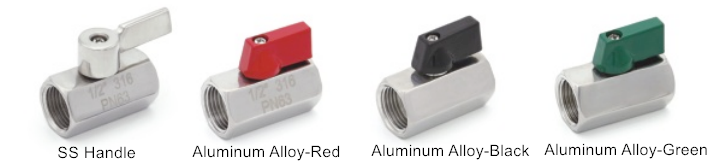

4HandleAluminum Alloy/CF8
5BodyCF8/CF8M
6CapCF8/CF8M
7A Ball Seat (a)PTFE/RPTFE
8BallF304/F316
9B Ball Seat (b)PTFE/RPTFE

  • Model Number:LT-54A
  • Structure:Floating Ball Valve
  • Type of Port:Reduced Bore
  • Through Type:Straight Thought Type
  • Size:1/8" to 1"
  • Power:Manual
  • Material:Stainless Steel
  • Connection:Female Thread(Inside Thread)
  • Medium:Water; Oil; Gas; Other
  • Temperature:Normal Temperature
  • Application:Industrial Usage; Water Industrial Usage; Household Usage; Pharmaceutical industry; Food Industry; Beer and beverage industry
  • Packing:Cartons; Plywood Cases; Wooden Pallet; Standard Seaworthy Packing
  • Brand Name:EADEK/WELFLOW
  • Place of Origin:China
  • HS Code:8481804090
  • Free Samples:Yes
  • Certificates:ISO9001-2015; ISO4144-2015; CE; RoHS; KC
