Stainless Steel F Type Camlock Fittings

Stainless Steel F Type Camlock Fittings

Model NO. LT-26A
  • Delivery:FOB
  • Minimum order quantity:100 pieces
  • Supply Ability:36500 pieces / Day
  • Country of Origin:China
  • Stock Time:30-45 Days
  • Product Description Photos

    Stainless Steel Camlock Coupling F Type

    Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.

    Type F Adapter- Male Grooved adapter + Male Thread
    Usually cooperates with Type B, Type C, Type D or Type DC couplers for the delivery of water, slurry, petroleum, and fuels in an economical way.

    • Size: 1/2"to 4"(DN15-DN100)
    • Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
    • End connection: Male Grooved Adapter and  Male Thread-BS21(BSPT & BSPP), ANSI B2.1(NPT)
    • Investment Casting Body
    • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
    • Warning: Type F stainless steel Camlock coupling is NOT for use with compressed air, gases or steam.
    Stainless Steel Camlock Coupling Operation Pressure
    SizeWorking Pressure
    1/2"150 PSI
    3/4"to 2"250 PSI
    2-1/2"225 PSI
    3"200 PSI
    4", 5"& 6"100 PSI
    Certificates:ISO9001-2015,ISO14001-2015, CE , RoHS & KC
    Factory Size:6600 M2
    Casting:Investment Casting Foundry-Wax Lost Technology
    CNC Machine:70 Sets (Still updating)
    Pressure Testing Machine4 Sets

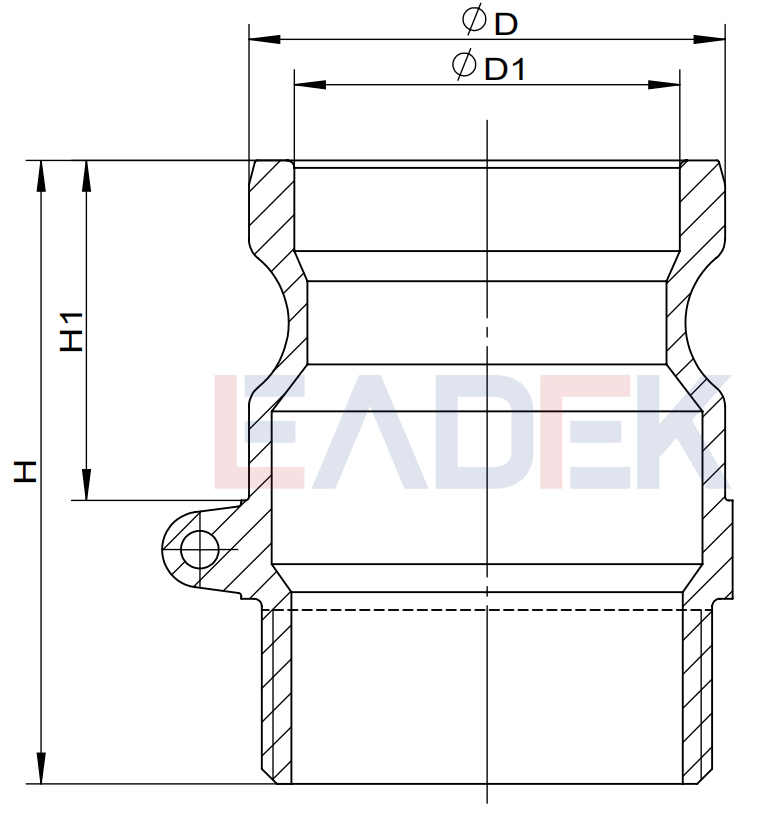

    Size

    DND(mm)D1(mm)H(mm)

    H1(mm)

    1/2"DN1524.017.051.527.5
    3/4"DN2032.124.154.528.5
    1"DN2536.727.762.033.0
    1-1/4"DN3245.535.570.539.0
    1-1/2"DN4053.442.473.040.0
    2"DN5063.051.082.545.0
    2-1/2"DN6575.862.889.047.5
    3"DN8091.577.596.551.0
    4"DN100119.5104.4105.052.5
    • Model Number:LT-26A
    • Type:Type F
    • Connection:Male Grooved Adapter; Male Thread
    • Material:Stainless Steel
    • Surface Treatment:Sand Blasting
    • Technics:Wax Investment Casting
    • Pressure:1/2" 150PSI; 3/4" to 2" 250PSI; 2-1/2“ 225PSI; 4” to 6" 100PSI
    • Medium:Water; Gasoline; Slurry; Fuels
    • Application:Water Industrial Usage; Household Usage; Pharmaceutical Industry
    • Packing:Cartons; Wooden Pallets; Plywood Cases
    • Brand Name:LEADTEK(EADEK)
    • HS Code:7307290000
    • Free Samples:Yes
    • Certificates:ISO9001-2015; ISO4144-2015; CE; RoHS; KC
