Male Adapter by Hose Tail - E type Camlock Coupling has a Male adapter on one end and a hose tail on the other end. The Male Adapter end will suitable for any Female Camlock Coupler and the hose tail is inserted inside any hose of the correct size.
Stainless Steel Camlock Coupling E Type
Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.
Type E Adapter- Male Adapter + Hose Tail
Male Adapter by Hose Tail - E type Camlock Coupling has a Male adapter on one end and a hose tail on the other end. The Male Adapter end will suitable for any Female Camlock Coupler and the hose tail is inserted inside any hose of the correct size.
- Size: 1/2"to 4"(DN15-DN100)
- Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
- End connection: Male Adapter and Hose Tail
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
- Warning: Type E stainless steel Cam Groove Fitting is NOT for use with compressed air, gases or steam.
Stainless Steel Camlock Coupling Operation Pressure | |
Size | Working Pressure |
1/2" | 150 PSI |
3/4"to 2" | 250 PSI |
2-1/2" | 225 PSI |
3" | 200 PSI |
4", 5"& 6" | 100 PSI |
Certificates: | ISO9001-2015,ISO14001-2015, CE , RoHS & KC |
Factory Size: | 6600 M2 |
Casting: | Investment Casting Foundry-Wax Lost Technology |
CNC Machine: | 70 Sets (Still updating) |
Pressure Testing Machine | 4 Sets |

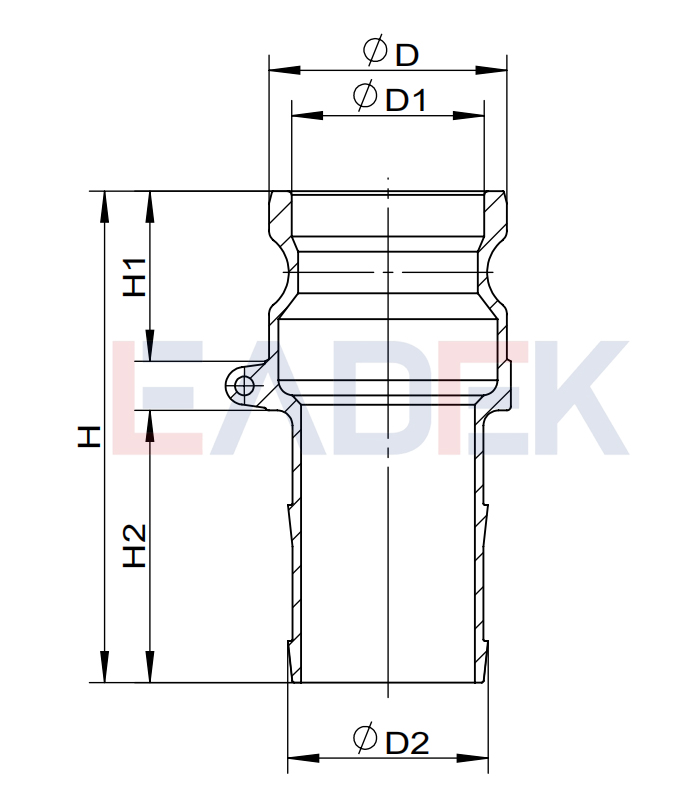

![]() | Size | DN | D | D1 | D2 | H | H1 | H2 |
1/2" | DN15 | 24.0 | 17.0 | 14.5 | 77.5 | 27.5 | 42.0 | |
3/4" | DN20 | 32.1 | 24.1 | 21.0 | 87.5 | 28.5 | 50.0 | |
1" | DN25 | 36.7 | 27.7 | 27.0 | 101.0 | 33.0 | 58.0 | |
1-1/4" | DN32 | 45.5 | 35.5 | 34.0 | 113.0 | 39.0 | 63.0 | |
1-1/2" | DN40 | 53.4 | 42.4 | 40.0 | 117.0 | 40.0 | 65.0 | |
2" | DN50 | 63.0 | 51.0 | 53.0 | 130.0 | 45.0 | 72.0 | |
2-1/2" | DN65 | 75.8 | 62.8 | 67.0 | 141.5 | 47.5 | 80.0 | |
3" | DN80 | 91.5 | 77.5 | 78.0 | 156.0 | 51.0 | 90.0 | |
4" | DN100 | 119.5 | 104.4 | 103.0 | 168.5 | 52.5 | 100.0 |
