Stainless Steel DP Camlock Fittings Dust Plug

Stainless Steel DP Camlock Fittings Dust Plug

Model NO. LT-28A
  • Delivery:FOB
  • Minimum order quantity:100 pieces
  • Supply Ability:36500 pieces / Day
  • Country of Origin:China
  • Stock Time:30-45 Days
  • Product Description Photo

    Stainless Steel Camlock Coupling DP Type ( Dust Plug)

    Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.

    Stainless Steel Camlock Dust Plug with male end adapter part DP.

    It is used well with Type B, Type C, Type D, and Type DC to sealing the end of the connection. The most advantage of stainless steel Cam & groove fittings are quick installation and saving your time.

    • Size: 1/2"to 4"(DN15-DN100)
    • Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
    • End connection: Male Adaptor
    • Investment Casting Body
    • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
    • OEM is acceptable and manufactures special requirements according to your drawings.
    • Warning: Type DP Dust Plug of stainless steel is NOT for use with compressed air, gases or steam.
    Stainless Steel Camlock Coupling Operation Pressure
    SizeWorking Pressure
    1/2"150 PSI
    3/4"to 2"250 PSI
    2-1/2"225 PSI
    3"200 PSI
    4", 5"& 6"100 PSI
    Certificates:ISO9001-2015,ISO14001-2015, CE , RoHS & KC
    Factory Size:6600 M2
    Casting:Investment Casting Foundry-Wax Lost Technology
    CNC Machine:70 Sets (Still updating)
    Pressure Testing Machine4 Sets

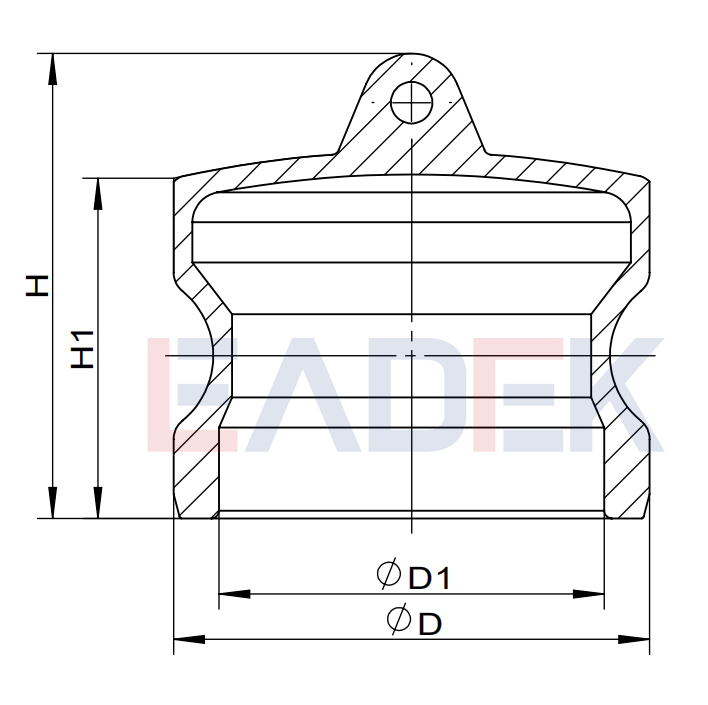

    Size

    DND(mm)D1(mm)H(mm)

    H1(mm)

    1/2"DN1524.017.036.527.5
    3/4"DN2032.124.139.028.5
    1"DN2536.727.745.033.0
    1-1/4"DN3245.535.552.539.0
    1-1/2"DN4053.442.455.040.0
    2"DN5063.051.061.545.0
    2-1/2"DN6575.862.865.547.5
    3"DN8091.577.570.551.0
    4"DN100119.5104.473.552.5
    • Model Number:LT-28A
    • Type:Type DP
    • Connection:Male Grooved Adapter
    • Material:Stainless Steel
    • Surface Treatment:Sand Blasting
    • Technics:Wax Investment Casting
    • Pressure:1/2" 150PSI; 3/4" to 2" 250PSI; 2-1/2“ 225PSI; 4” to 6" 100PSI
    • Medium:Water; Gasoline; Slurry; Fuels
    • Application:Industrial Usage; Household Usage; Pharmaceutical Industry
    • Packing:Cartons; Wooden Pallets; Plywood Cases
    • Brand Name:LEADTEK(EADEK)
    • HS Code:7307290000
    • Free Samples:Yes
    • Certificates:ISO9001-2015; ISO4144-2015; CE; RoHS; KC
