Stainless Steel DC Type Camlock Fittings Dust Cap
Stainless Steel Camlock Dust Cap is always used with Type A, Type E, Type F or Dust Plug (DP) adapters to seal the end of the connections.
LT-27A
FOB
100 pieces
36500pieces / Day
China
30-45Day
Quantity:
Stainless Steel DC Type Camlock Fittings Dust Cap
Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.
Stainless Steel Camlock Dust Cap is always used with Type A, Type E, Type F or Dust Plug (DP) adapters to seal the end of the connections.
- Size: 1/2"to 4"(DN15-DN100)
- Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
- End connection: Female Coupler End
- Investment Casting Body
- Handles & Pin: Stainless Steel 304
- Gasket: NBR, EPDM, Viton, PTFE, Silica gel, etc.
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
- Warning: Type DC -Dust Cap is NOT for use with compressed air, gases or steam.

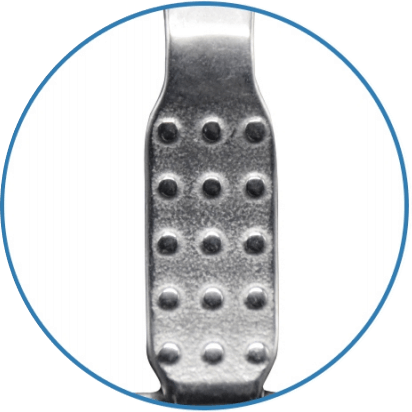

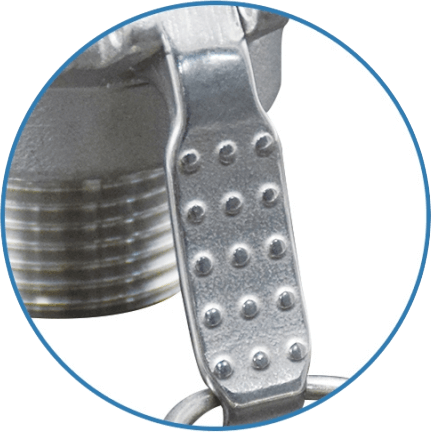

The advantage of Leadtek Special Design of Handles (Cam's arms):
1. Ergonomic and labor-saving: The raised smooth dots play a friction role and effectively protect your hands.
2. Widened and Thickened: Strong practicability and long service life.
| Stainless Steel Camlock Coupling Operation Pressure | |
| Size | Working Pressure |
| 1/2" | 150 PSI |
| 3/4"to 2" | 250 PSI |
| 2-1/2" | 225 PSI |
| 3" | 200 PSI |
| 4", 5"& 6" | 100 PSI |
| Certificates: | ISO9001-2015,ISO14001-2015, CE , RoHS & KC |
| Factory Size: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

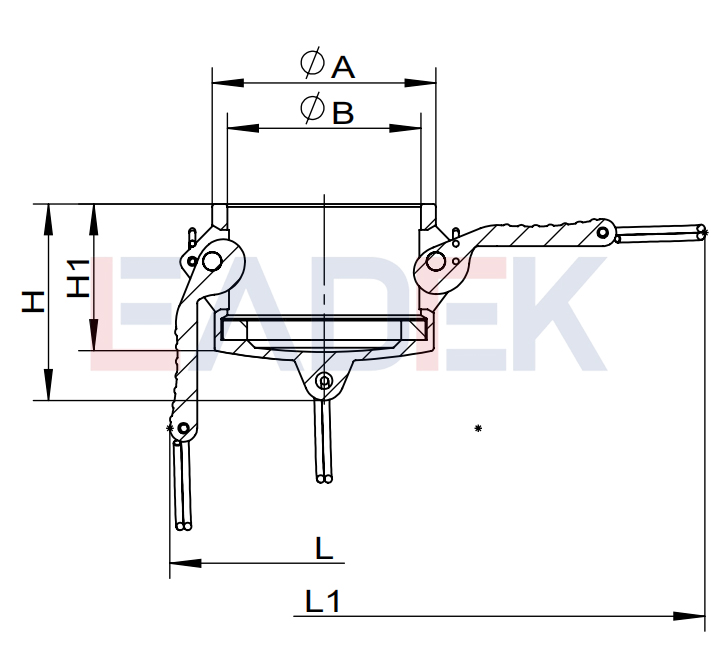

 | Size | DN | A | B | H | H1 | L | L1 |
| 1/2" | DN15 | 31.8 | 24.4 | 38.2 | 29.2 | 50.0 | 166.8 | |
| 3/4" | DN20 | 39.9 | 32.5 | 42.0 | 31.5 | 58.0 | 174.8 | |
| 1" | DN25 | 45.7 | 37.2 | 49.1 | 37.1 | 69.0 | 195.1 | |
| 1-1/4" | DN32 | 55.5 | 46.1 | 56.5 | 43.0 | 85.0 | 234.9 | |
| 1-1/2" | DN40 | 63.4 | 54.0 | 58.5 | 43.5 | 92.5 | 242.4 | |
| 2" | DN50 | 74.0 | 63.6 | 65.0 | 48.5 | 102.0 | 251.9 | |
| 2-1/2" | DN65 | 87.8 | 76.4 | 69.0 | 51.0 | 114.5 | 264.4 | |
| 3" | DN80 | 104.5 | 92.3 | 74.0 | 54.5 | 139.5 | 305.8 | |
| 4" | DN100 | 133.5 | 120.3 | 77.0 | 56.0 | 168.0 | 334.3 |
 | ||

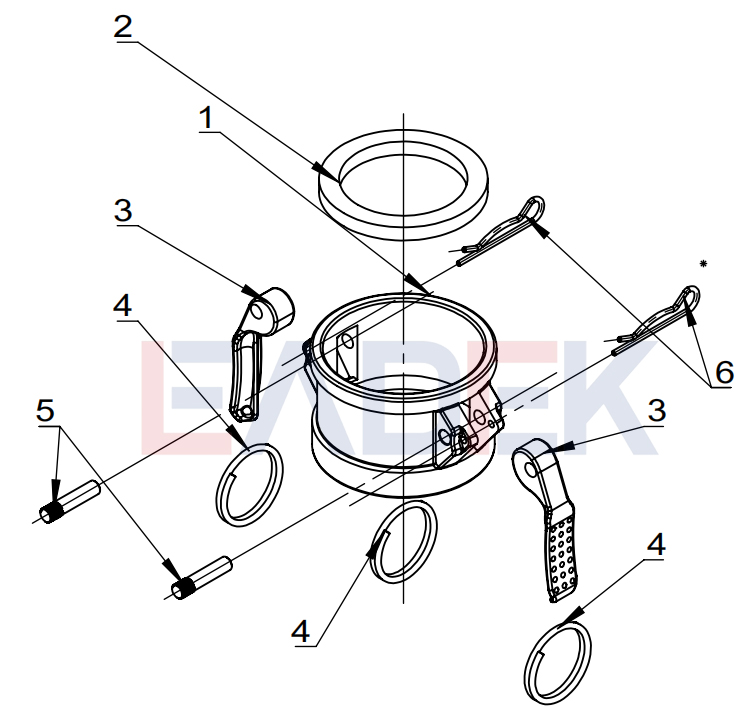

| NO | Parts Name | Material |
| 1 | Body | SS304/SS316 |
| 2 | Gasket | NBR/EPDM/Viton/Silica gel |
| 3 | Handle | SS304 |
| 4 | Ring | SS304 |
| 5 | Pin | SS304 |
| 6 | Split Pin | SS304 |
