Stainless Steel C Type Camlock Fittings
Stainless Steel C Type Camlock Fittings

Stainless Steel C Type Camlock Fittings

Model NO.:
LT-23A
Price:
US $ 1.43-14.27 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
36500 pieces / Day
Country of Origin:
China
Stock Time:
30-45 Days

Product Description Photo

Stainless Steel Camlock Coupling C Type

Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.

Type C Coupler- Female Camlock End + Hose Tail
Female Coupler by Hose Tail - C type Camlock Coupling has a female Camlock on one end and a hose tail on the other end. The female Camlock end will suitable for any male Camlock adaptor and the hose tail is inserted inside any hose of the correct size.

  • Size: 1/2"to 4"(DN15-DN100)
  • Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
  • End connection: Female Camlock End + Hose Tail
  • Investment Casting Body
  • Handles & Pin: Stainless Steel 304
  • Gasket: NBR, EPDM, Viton, PTFE, Silica gel, etc.
  • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
  • OEM is acceptable and manufactures special requirements according to your drawings.
  • Warning: Type C stainless steel Camlock coupling is NOT for use with compressed air, gases or steam.

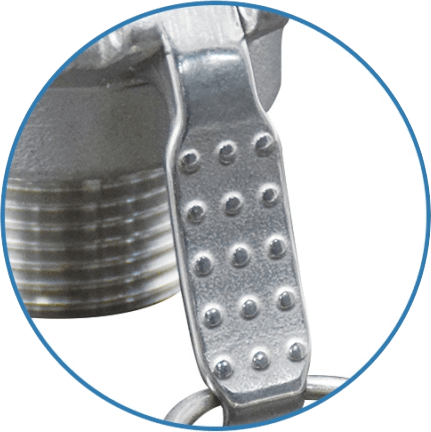

The advantage of Leadtek Special Design of Handles (Cam's arms):

1. Ergonomic and labor-saving: The raised smooth dots play a friction role and effectively protect your hands.

2. Widened and Thickened: Strong practicability and long service life.

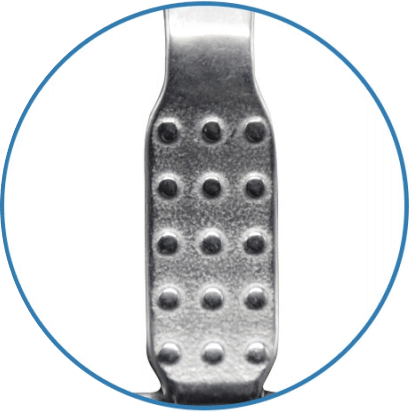

Handle design of B Type Camlock Coupling Cam's Arms of Camlock Coupling

Stainless Steel Camlock Coupling Operation Pressure
SizeWorking Pressure
1/2"150 PSI
3/4"to 2"250 PSI
2-1/2"225 PSI
3"200 PSI
4", 5"& 6"100 PSI
Certificates:ISO9001-2015,ISO14001-2015, CE , RoHS & KC
Factory Size:6600 M2
Casting:Investment Casting Foundry-Wax Lost Technology
CNC Machine:70 Sets (Still updating)
Pressure Testing Machine4 Sets

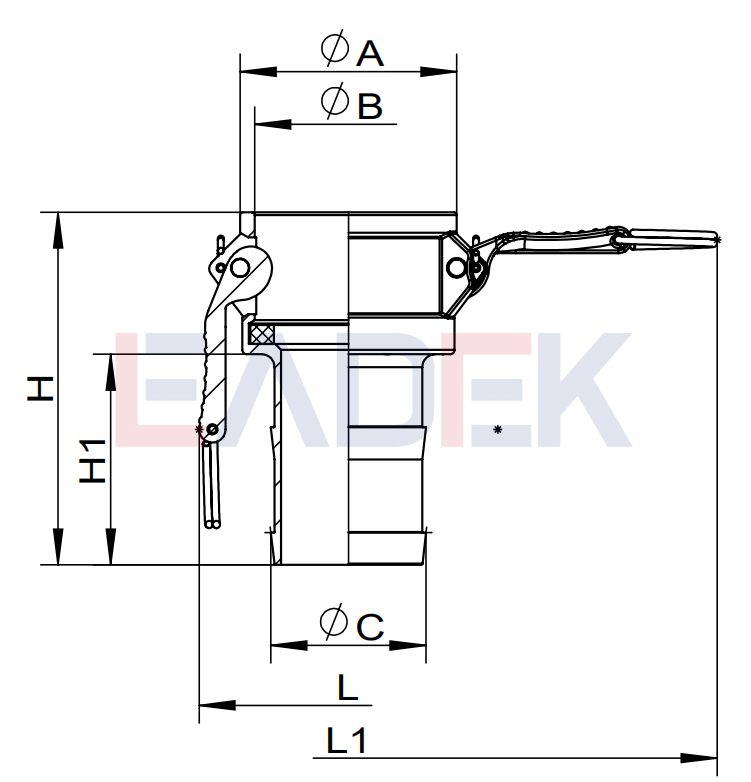

Size

DNABCHH1LL1
1/2"DN1531.824.414.571.242.050.0166.8
3/4"DN2039.932.521.081.550.058.0174.8
1"DN2545.737.227.095.158.069.0195.1
1-1/4"DN3255.546.134.0106.063.085.0234.9
1-1/2"DN4063.454.040.0108.565.092.5242.4
2"DN5074.063.653.0120.572.0102.0251.9
2-1/2"DN6587.876.467.0131.080.0114.5264.4
3"DN80104.592.378.0144.590.0139.5305.8
4"DN100133.5120.3103.0156.0100.0168.0334.3

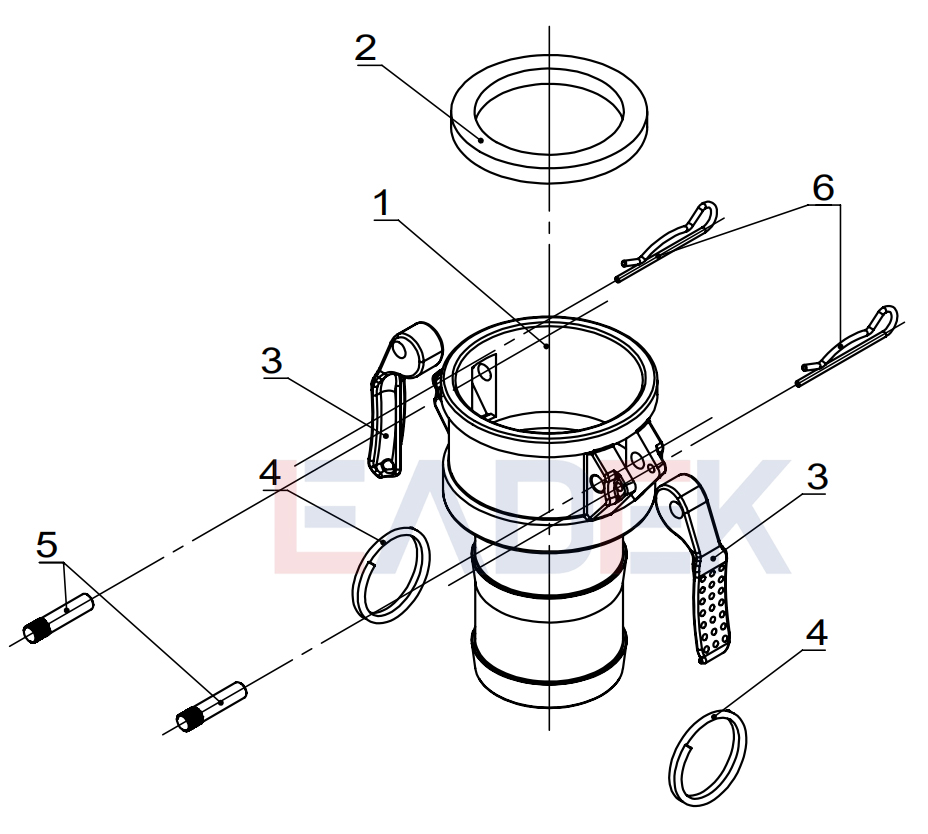

NOParts Name

Material

1BodySS304/SS316
2GasketNBR/EPDM/Viton/Silica gel
3HandleSS304
4RingSS304
5PinSS304
6Split PinSS304
  • Model Number:LT-23A
  • Type:Type C
  • Size:1/2";3/4";1";1-1/4";1-1/2";2";2-1/2";3";4"
  • Connection:Female Coupler End;Hose Tails
  • Material:Stainless Steel
  • Surface Treatment:Sand Blasting
  • Technics:Wax Investment Casting
  • Pressure:1/2" 150PSI;3/4" to 2" 250PSI;2-1/2“ 225PSI;4” to 6" 100PSI
  • Medium:Water;Gasoline;Slurry;Petroleum
  • Application:Water Industrial Usage;Pharmaceutical Industry;Food Industry
  • Packing:Cartons;Wooden Pallets;Standard Seaworthy Packing
  • Brand Name:LEADTEK(EADEK)
  • HS Code:7307290000
  • Free Samples:Yes
  • Certificates:ISO9001-2015;ISO4144-2015;CE;RoHS;KC
