Stainless Steel Barrel Nipple (GB Standard)
Stainless Steel 304/316 Barrel Nipple GB Standard with Standard Length.
Outside surface: Polished
Outside surface: Polished
LT-32A
FOB
100 pieces
36500pieces / Day
45Day
Quantity:

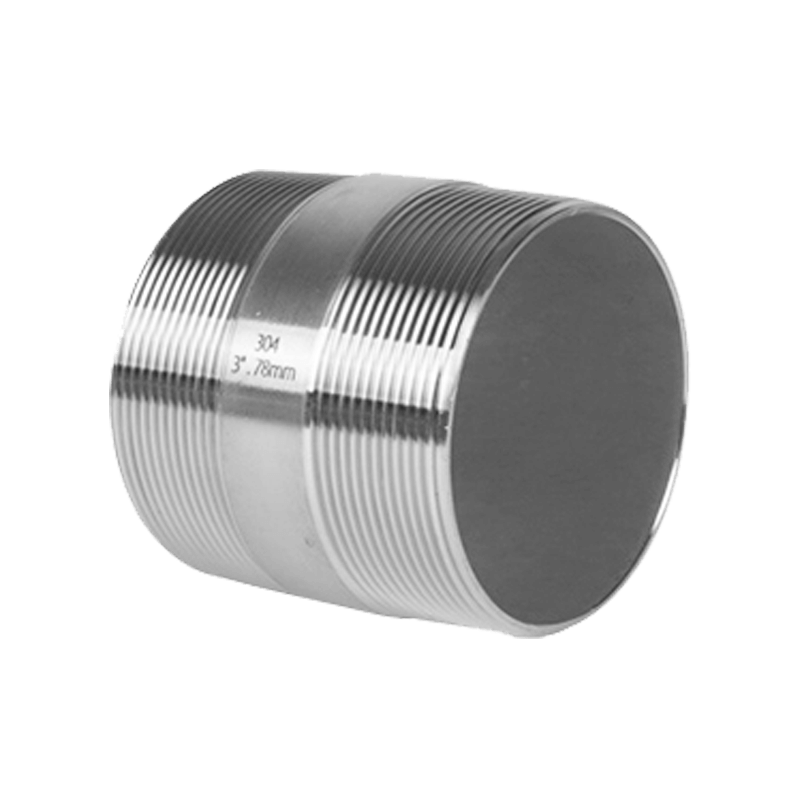

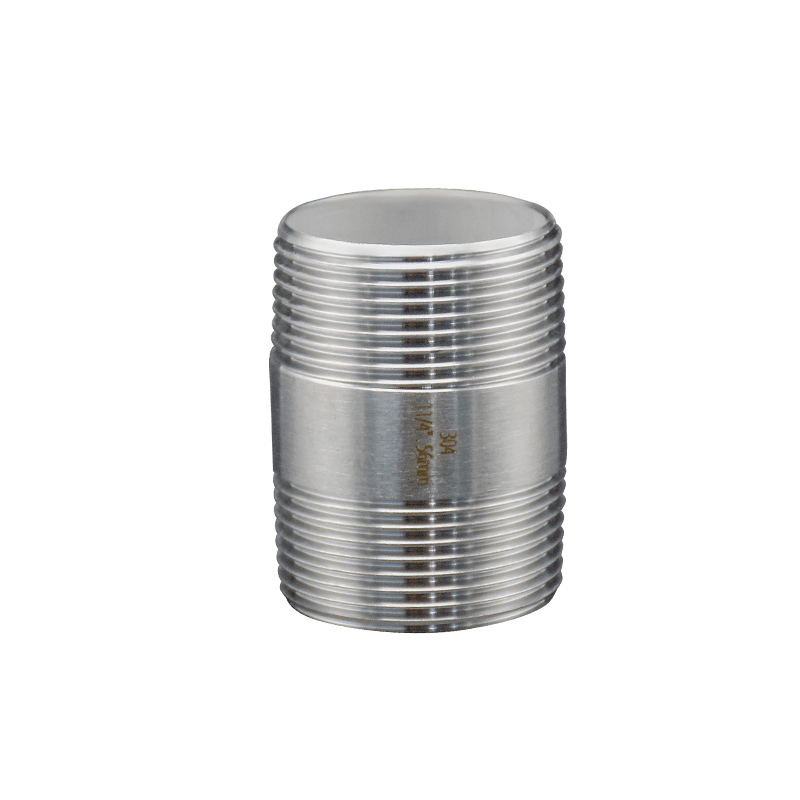

Stainless Steel Barrel Nipple GB Standard
- Size: 1/8”-4”(DN6-DN100)
- End connection: PT, BSP
- Processed from Pipes (Tube)
- Material: 304/316
- Standard: GB/T7306
- Surface Treatment: Polish & Pickling
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

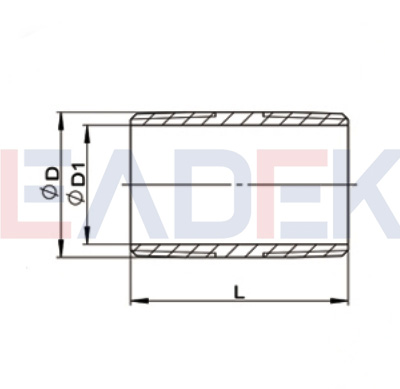

 | Size | DN | D (mm) | D1 (mm) | L(mm) |
| 1/8" | 6 | 10.0 | 6.0 | 38.0 | |
| 1/4" | 8 | 14.0 | 9.0 | 38.0 | |
| 3/8" | 10 | 17.0 | 12.0 | 38.0 | |
| 1/2" | 15 | 21.3 | 16.3 | 42.0 | |
| 3/4" | 20 | 26.7 | 21.7 | 45.0 | |
| 1" | 25 | 33.4 | 27.4 | 50.0 | |
| 1-1/4" | 32 | 42.0 | 36.0 | 56.0 | |
| 1-1/2" | 40 | 48.0 | 42.0 | 58.0 | |
| 2" | 50 | 60.0 | 53.0 | 64.0 | |
| 2-1/2" | 65 | 76.0 | 68.0 | 70.0 | |
| 3" | 80 | 89.0 | 80.0 | 78.0 | |
| 4" | 100 | 114.0 | 104.0 | 90.0 |
