Stainless Steel Camlock Coupling B Type
Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.
Type B Camlock Coupler - Female Camlock End + Male Thread
Usually used with type F, A, E, F or DP adapters for carrying water, coolants, gasoline, petroleum and hydraulic fluids of agriculture, construction, and industries.
- Size: 1/2"to 4"(DN15-DN100)
- Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
- End connection: Female Coupler End & Male Thread -BS21(BSPT & BSPP), ANSI B2.1(NPT)
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- Handles & Pin: Stainless Steel 304
- Gasket: NBR, EPDM, Viton, PTFE, Silica gel, etc.
- OEM is acceptable and manufactures special requirements according to your drawings.
- Warning: Type B stainless steel Camlock coupling is NOT for use with compressed air, gases or steam.

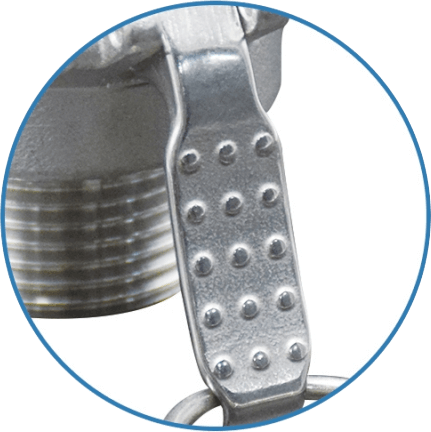

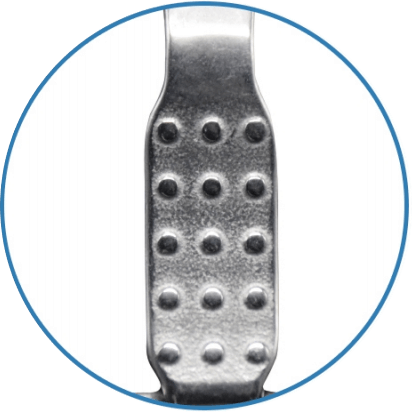

The advantage of Leadtek Special Design of Handles (Cam's arms):
1. Ergonomic and labor-saving: The raised smooth dots play a friction role and effectively protect your hands.
2. Widened and Thickened: Strong practicability and long service life.
| Stainless Steel Camlock Coupling Operation Pressure | |
| Size | Working Pressure |
| 1/2" | 150 PSI |
| 3/4"to 2" | 250 PSI |
| 2-1/2" | 225 PSI |
| 3" | 200 PSI |
| 4", 5"& 6" | 100 PSI |
| Certificates: | ISO9001-2015,ISO14001-2015, CE , RoHS & KC |
| Factory Size: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

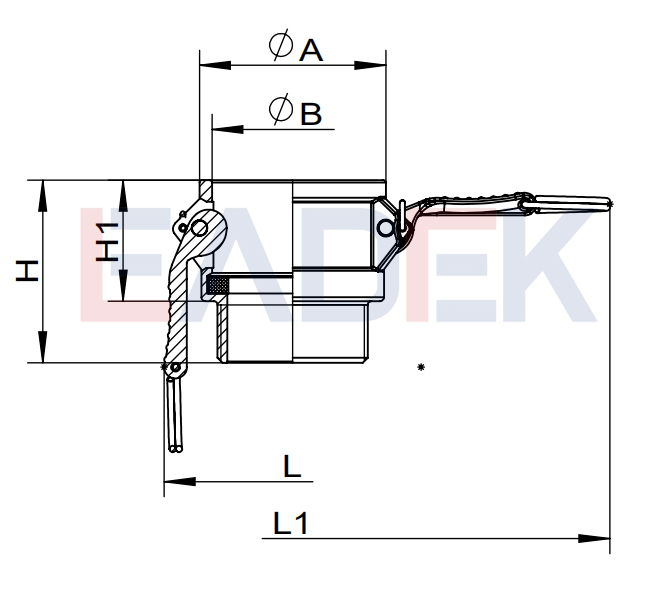

 | Size | DN | A | B | H | H1 | L | L1 |
| 1/2" | DN15 | 31.8 | 24.4 | 44.7 | 28.1 | 50.0 | 166.8 | |
| 3/4" | DN20 | 39.9 | 32.5 | 48.5 | 31.5 | 58.0 | 174.8 | |
| 1" | DN25 | 45.7 | 37.2 | 56.1 | 37.1 | 69.0 | 195.1 | |
| 1-1/4" | DN32 | 55.5 | 46.1 | 63.5 | 43.0 | 85.0 | 234.9 | |
| 1-1/2" | DN40 | 63.4 | 54.0 | 64.5 | 43.5 | 92.5 | 242.4 | |
| 2" | DN50 | 74.0 | 63.6 | 72.5 | 48.0 | 102.0 | 251.9 | |
| 2-1/2" | DN65 | 87.8 | 76.4 | 77.5 | 50.0 | 114.5 | 264.4 | |
| 3" | DN80 | 104.5 | 92.3 | 84.0 | 53.5 | 139.5 | 305.8 | |
| 4" | DN100 | 133.5 | 120.3 | 91.0 | 54.5 | 168.0 | 334.3 |
 | ||

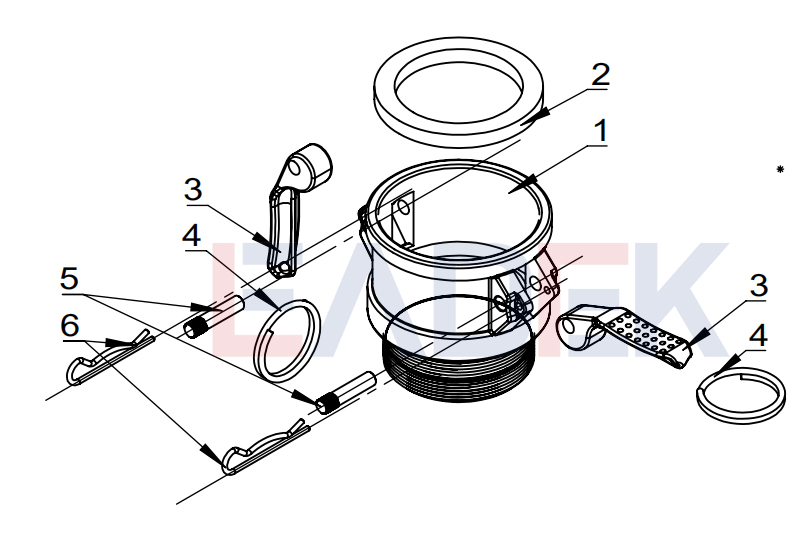

| NO | Parts Name | Material |
| 1 | Body | SS304/SS316 |
| 2 | Gasket | NBR/EPDM/Viton/Silica gel |
| 3 | Handle | SS304 |
| 4 | Ring | SS304 |
| 5 | Pin | SS304 |
| 6 | Split Pin | SS304 |
