Stainless Steel A Type Camlock Fittings
Type A Camlock Adapter- Male grooved adapter + Female Thread
Usually cooperates with Type B, Type C, Type D or Type DC couplers for the delivery of water, slurry, petroleum, and fuels in an economical way.
Usually cooperates with Type B, Type C, Type D or Type DC couplers for the delivery of water, slurry, petroleum, and fuels in an economical way.
LT-21A
FOB
100 pieces
36500pieces / Day
China
30-45Day
Quantity:

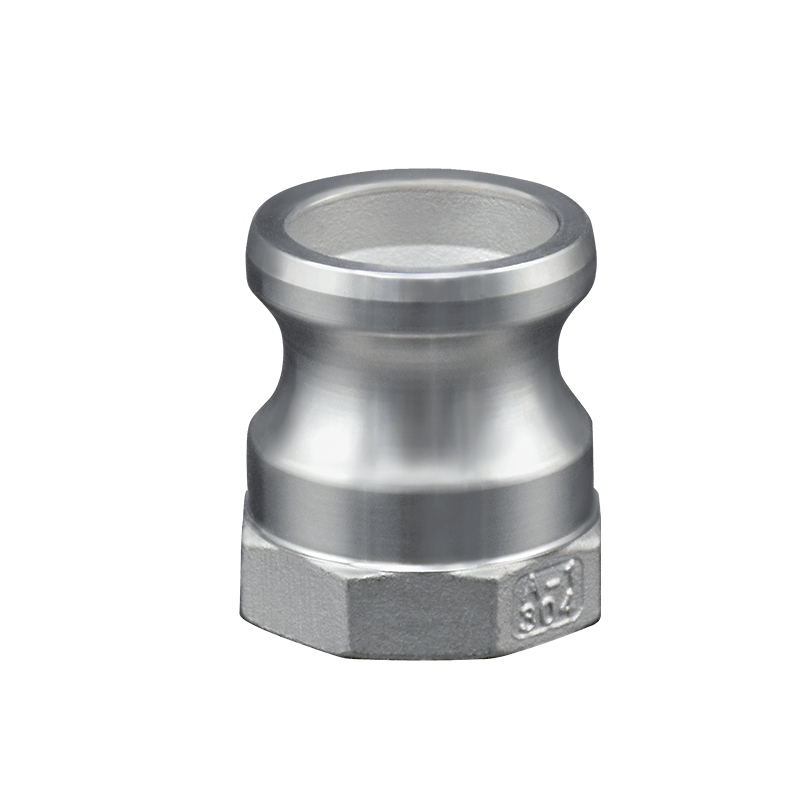

Stainless Steel Camlock Coupling A Type
Camlock Fitting is also named as Cam and Groove Fittings or Camlock Coupling. Camlock Hose Fittings used in various industries and applications.Camlock Fittings which including with Camlock Quick Connect, is easy to connect with pipes, tubing or hoses. Normally with Male Adapter Ends, Female Coupler Ends and Hose Tails.
Type A Camlock Adapter- Male grooved adapter + Female Thread
Usually cooperates with Type B, Type C, Type D or Type DC couplers for the delivery of water, slurry, petroleum, and fuels in an economical way.
- Size: 1/2"to 4"(DN15-DN100)
- Max Pressure: 1/2"(150PSI), 3/4"to 2"(250PSI), 2-1/2"(225PSI), 3"(200PSI), 4"(100PSI)
- End connection: Male Adaptor & Female Thread-BS21(BSPT & BSPP), ANSI B2.1(NPT)
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
- Warning: Type A stainless steel Camlock coupling is NOT for use with compressed air, gases or steam.
| Stainless Steel Camlock Coupling Operation Pressure | |
| Size | Working Pressure |
| 1/2" | 150 PSI |
| 3/4"to 2" | 250 PSI |
| 2-1/2" | 225 PSI |
| 3" | 200 PSI |
| 4", 5"& 6" | 100 PSI |
| Certificates: | ISO9001-2015,ISO14001-2015, CE , RoHS & KC |
| Factory Size: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

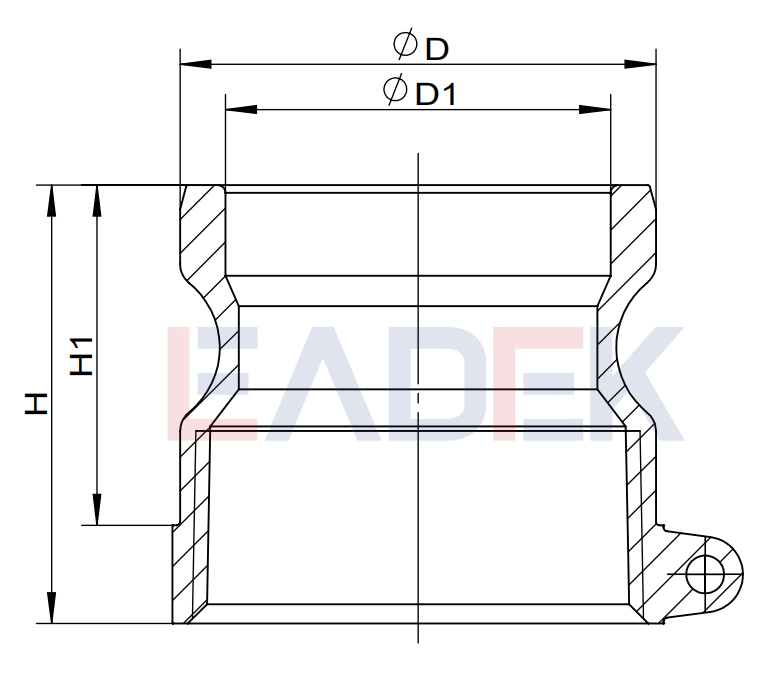

 | Size | DN | D | D1 | H | H1 |
| 1/2" | DN15 | 24.0 | 17.0 | 35.5 | 27.5 | |
| 3/4" | DN20 | 32.1 | 24.1 | 37.5 | 28.5 | |
| 1" | DN25 | 36.7 | 27.7 | 43.0 | 33.0 | |
| 1-1/4" | DN32 | 45.5 | 35.5 | 50.0 | 39.0 | |
| 1-1/2" | DN40 | 53.4 | 42.4 | 52.0 | 40.0 | |
| 2" | DN50 | 63.0 | 51.0 | 58.0 | 45.0 | |
| 2-1/2" | DN65 | 75.8 | 62.8 | 75.0 | 61.0 | |
| 3" | DN80 | 91.5 | 77.5 | 66.0 | 51.0 | |
| 4" | DN100 | 119.5 | 104.4 | 68.5 | 52.5 |
