Stainless Steel 90 Degree Reducing Elbow
LT-01B
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
What is Threaded Pipe Fittings?
Leadtek Manufacture Threaded Pipe Fittings widely used in water, oil, gas media pipeline.The connection end is threaded(BSPT,BSPP,NPT,DIN259/2999,ISO228 etc).Female(Inside Thread) & Male(Outside Threaded) all machined by CNC Machining. These Items including with Elbows, Tee, Socket, Reducing Nipple, Union, Bushing, Hose Nipple(King Nipple), Reducing Socket and so on.
Stainless Steel 90 Degree Reducing Elbow FF
- Size: 1/4"x 1/8"- 4"x 3"(DN8 x DN6 - DN100 x DN80)
- Max Pressure: 150PSI
- Standard: ISO 4144
- End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
- Investment Casting Body
- Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

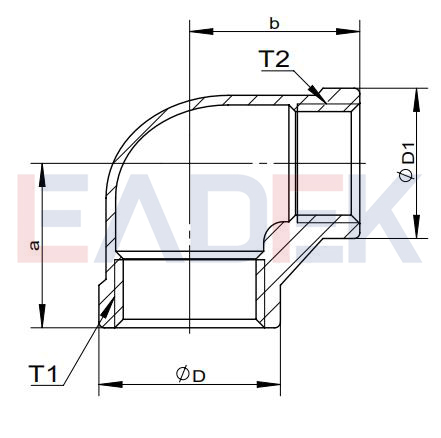

 | Size T1 x T2 | DN | D | D1 | a | b |
| 1/4"x 1/8" | 8 x 6 | 18.0 | 14.5 | 18.0 | 18.0 | |
| 3/8"x 1/8" | 10 x 6 | 21.5 | 14.5 | 19.0 | 20.0 | |
| 3/8"x 1/4" | 10 x 8 | 21.5 | 18.0 | 20.0 | 22.0 | |
| 1/2"x 1/8" | 15 x 6 | 26.5 | 14.5 | 23.0 | 22.0 | |
| 1/2"x 1/4" | 15 x 8 | 26.5 | 18.0 | 24.0 | 24.0 | |
| 1/2"x 3/8" | 15 x 10 | 26.5 | 21.5 | 26.0 | 25.0 | |
| 3/4"x 1/4" | 20 x 8 | 32.0 | 18.0 | 26.0 | 27.0 | |
| 3/4"x 3/8" | 20 x 10 | 32.0 | 21.5 | 28.0 | 28.0 | |
| 3/4"x 1/2" | 20 x15 | 32.0 | 26.5 | 29.0 | 30.0 | |
| 1"x 1/4" | 25 x 8 | 39.5 | 18.0 | 29.0 | 30.0 | |
| 1"x 3/8" | 25 x 10 | 39.5 | 21.5 | 31.0 | 31.0 | |
| 1"x1/2" | 25 x 15 | 39.5 | 26.5 | 32.0 | 33.0 | |
| 1"x 3/4" | 25 x 20 | 39.5 | 32.0 | 34.0 | 35.0 | |
| 1-1/4"x 3/8" | 32 x 10 | 48.5 | 21.5 | 34.0 | 39.0 | |
| 1-1/4"x 1/2" | 32 x 15 | 48.5 | 26.5 | 34.0 | 39.0 | |
| 1-1/4"x 3/4" | 32 x 20 | 48.5 | 32.0 | 37.0 | 40.0 | |
| 1-1/4"x 1" | 32 x 25 | 48.5 | 39.5 | 40.0 | 42.0 | |
| 1-1/2"x 3/8" | 40 x 10 | 55.0 | 21.5 | 35.0 | 42.0 | |
| 1-1/2"x 1/2" | 40 x 15 | 55.0 | 26.5 | 35.0 | 42.0 | |
| 1-1/2"x 3/4" | 40 x 20 | 55.0 | 32.0 | 38.0 | 43.0 | |
| 1-1/2"x 1" | 40 x 25 | 55.0 | 39.5 | 41.0 | 45.0 | |
| 1-1/2"x 1-1/4" | 40 x 32 | 55.0 | 48.5 | 45.0 | 48.0 | |
| 2"x 1/2" | 50 x 15 | 67.0 | 26.5 | 36.0 | 48.0 | |
| 2"x 3/4" | 50 x 20 | 67.0 | 32.0 | 40.0 | 49.0 | |
| 2"x 1" | 50 x 25 | 67.0 | 39.5 | 43.0 | 51.0 | |
| 2"x 1-1/4" | 50 x 32 | 67.0 | 48.5 | 47.0 | 53.0 | |
| 2"x 1-1/2" | 50 x 40 | 67.0 | 55.0 | 51.0 | 54.0 | |
| 2-1/2 x 1/2" | 65 x 15 | 84.0 | 26.5 | 47.0 | 60.0 | |
| 2-1/2"x 3/4" | 65 x 20 | 84.0 | 32.0 | 47.0 | 60.0 | |
| 2-1/2"x 1" | 65 x 25 | 84.0 | 39.5 | 47.0 | 60.0 | |
| 2-1/2"x 1-1/4" | 65 x 32 | 84.0 | 48.5 | 52.0 | 61.0 | |
| 2-1/2"x 1-1/2" | 65 x 40 | 84.0 | 55.0 | 55.0 | 62.0 | |
| 2-1/2"x 2" | 65 x 50 | 84.0 | 67.0 | 60.0 | 65.0 | |
| 3"x 1" | 80 x 25 | 98.0 | 39.5 | 54.0 | 68.0 | |
| 3"x 1-1/4" | 80 x 32 | 98.0 | 48.5 | 54.0 | 68.0 | |
| 3"x 1-1/2" | 80 x 40 | 98.0 | 55.0 | 57.0 | 69.0 | |
| 3"x 2" | 80 x 50 | 98.0 | 67.0 | 62.0 | 72.0 | |
| 3"x 2-1/2" | 80 x 65 | 98.0 | 84.0 | 72.0 | 75.0 | |
| 4"x 1-1/4" | 100 x 32 | 124.5 | 48.5 | 60.0 | 83.0 | |
| 4"x 1-1/2" | 100 x 40 | 124.5 | 55.0 | 63.0 | 84.0 | |
| 4"x 2" | 100 x 50 | 124.5 | 67.0 | 68.0 | 87.0 | |
| 4"x 2-1/2" | 100 x 65 | 124.5 | 84.0 | 78.0 | 90.0 | |
| 4"x 3" | 100 x 80 | 124.5 | 98.0 | 83.0 | 91.0 |
