Stainless Steel 45 Degree Street Elbow FM

Stainless Steel 45 Degree Street Elbow FM

Model NO. LT-10A
  • Delivery:FOB
  • Minimum order quantity:100 pieces
  • Supply Ability:36500 pieces / Day
  • Stock Time:45 Days
  • What are Threaded Pipe Fittings?

    Leadtek Manufacture Threaded Pipe Fittings widely used in water, oil, gas media pipeline.The connection end is threaded(BSPT,BSPP,NPT,DIN259/2999,ISO228 etc).Female(Inside Thread) & Male(Outside Threaded) all machined by CNC Machining. These Items including with Elbows, Tee, sockets, Reducing Nipple, Union, Bushing, Hose Nipple(King Nipple), Reducing sockets, and so on.

    Stainless Steel 45 Degree Street Elbow FM

    • Size: 1/8"-4"(DN6-DN100)
    • Max Pressure: 150PSI
    • Standard: ISO 4144
    • End connection: BS21(BSPT & BSPP), ANSI B2.1(NPT), DIN259/2999,ISO 228
    • Investment Casting Body
    • Material: SS304(CF8,SUS304,1.4308),SS316(CF8M,SUS316,1.4408), SS304L,SS316L
    • OEM is acceptable and manufactures special requirements according to your drawings.
    Certificates:ISO9001-2015,ISO14001-2015, CE & KC
    Square:6600 M2
    Casting:Investment Casting Foundry-Wax Lost Technology
    CNC Machine:70 Sets (Still updating)
    Pressure Testing Machine4 Sets

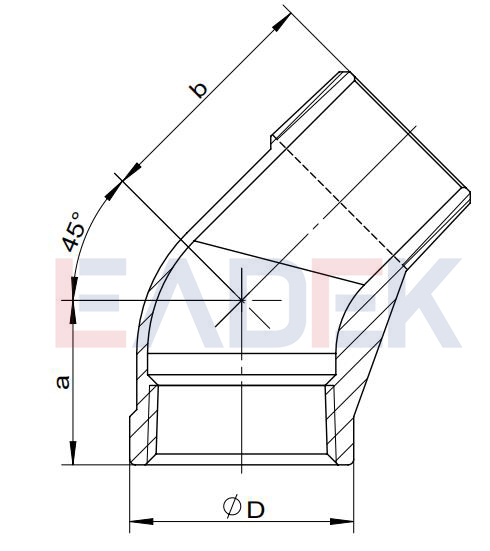

    SizeDNφD (mm)a (mm)b (mm)
    1/8"614.516.021.0
    1/4"818.017.023.0
    3/8"1021.519.027.0
    1/2"1526.521.031.0
    3/4"2032.025.036.0
    1"2539.529.042.0
    1-1/4"3248.533.049.0
    1-1/2"4055.037.051.0
    2"5067.042.059.0
    2-1/2"6584.049.071.0
    3"8098.054.079.0
    4"100124.564.096.0
