2 Piece Flanged Ball Valve JIS 10K - Low Pad Design
- Item No: LT-62A-C
- Full Bore
- Material
| Body, Ball, and Stem | Stainless Steel 304 or 316 |
| Bolts, Nuts, Spring Washer, etc | Stainless Steel 304 |
| Seat Packing | Normally for PTFE (Under 120 degree), 15% Fiber + PTFE, 25% Carbon Fiber + PTFE, PPL |
| Handle | As photos show in Stainless Steel 201 or Cast Iron |
- Size: 1/2"to 6"(DN15-DN150)
- Power: Manual Operated (Handle)
- Casting process: Composite
- Pressure Rating: JIS 10K
- Design:JIS B2002
- Test & Inspect : JIS B2003
- Face to Face Dimension: JIS B2002
- Flange Dimension: JIS B2220
- Medium: Water, Gasoline, Fuels, Gas, etc.
 | ||

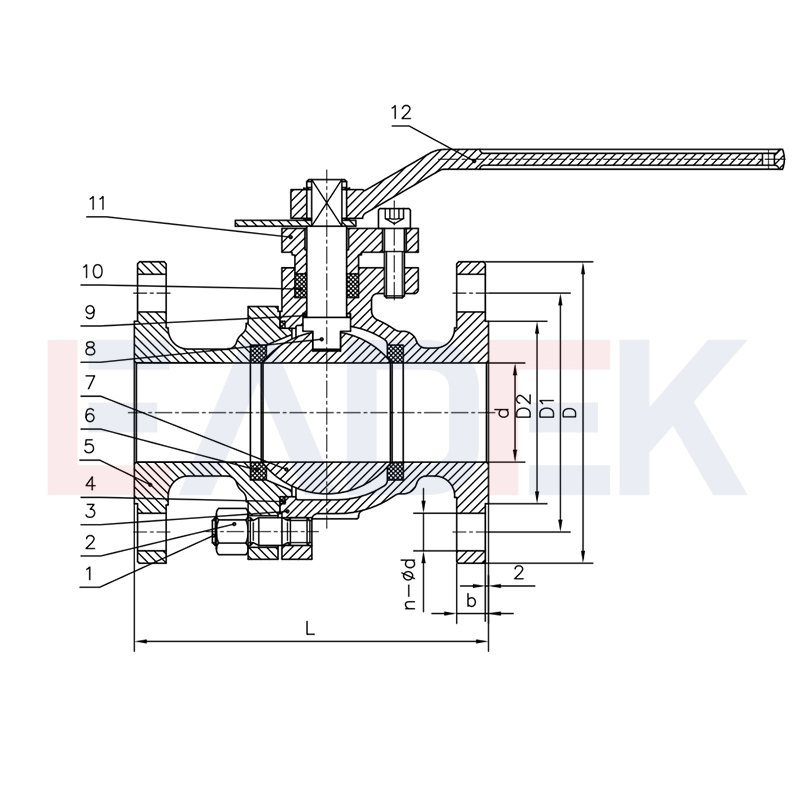

| NO | Parts Name | Material |
| 1 | Bolt | SS304 |
| 2 | Nut | SS304 |
| 3 | Body | CF8/CF8M |
| 4 | Gasket | PTFE |
| 5 | Bonnet | CF8/CF8M |
| 6 | Seat | PTFE/RPTFE |
| 7 | Ball | F304/F316 |
| 8 | Stem | SS304/SS316 |
| 9 | Gasket | PTFE |
| 10 | Packing | PTFE |
| 11 | Gland Nut | SS304 |
| 12 | Handle | SS & Cast Iron |
| Size | L | d | D | D1 | D2 | b | n-Φd |
| 1/2" | 108 | 15 | 95 | 70 | 51 | 12 | 4-15 |
| 3/4" | 117 | 20 | 100 | 75 | 56 | 14 | 4-15 |
| 1" | 127 | 25 | 125 | 90 | 67 | 14 | 4-19 |
| 1-1/4" | 140 | 32 | 135 | 100 | 76 | 16 | 4-19 |
| 1-1/2" | 165 | 38 | 140 | 105 | 81 | 16 | 4-19 |
| 2" | 178 | 50 | 155 | 120 | 96 | 16 | 4-19 |
| 2-1/2" | 190 | 65 | 175 | 140 | 116 | 18 | 4-19 |
| 3" | 203 | 78 | 185 | 150 | 126 | 18 | 8-19 |
| 4" | 229 | 98 | 210 | 175 | 151 | 18 | 8-19 |
| 5" | 356 | 125 | 250 | 210 | 182 | 20 | 8-23 |
| 6" | 394 | 150 | 280 | 240 | 212 | 22 | 8-23 |
