JIS Standard Stainless Steel Toe Nipple
Stainless Steel Toe Nipple with Welding and Male Thread.Surface: Pickling
LT-38A
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
JIS Standard Stainless Steel Toe Nipple
- Size: 1/8”-4”(DN6-DN100)
- End connection: PT
- Processed from Pipes (Tube)
- Material: 304/316
- Standard: JIS B2302
- Nominal Wall Thickness: SCH20S,SCH40S
- Surface Treatment: Pickling
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

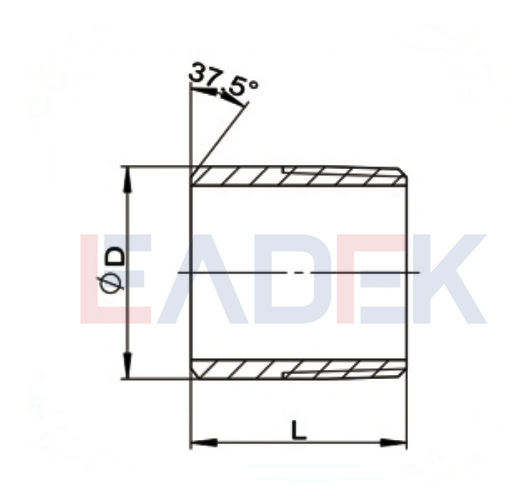

 | Size | DN | D (mm) | L(mm) |
| 1/8" | 6 | 10.5 | 24.5 | |
| 1/4" | 8 | 13.8 | 26.5 | |
| 3/8" | 10 | 17.3 | 28.5 | |
| 1/2" | 15 | 21.7 | 34.5 | |
| 3/4" | 20 | 27.2 | 38.5 | |
| 1" | 25 | 34.0 | 42.5 | |
| 1-1/4" | 32 | 42.7 | 50.5 | |
| 1-1/2" | 40 | 48.6 | 50.5 | |
| 2" | 50 | 60.5 | 58.5 | |
| 2-1/2" | 65 | 76.3 | 70.5 | |
| 3" | 80 | 89.1 | 78.5 | |
| 4" | 100 | 114.3 | 90.5 |
