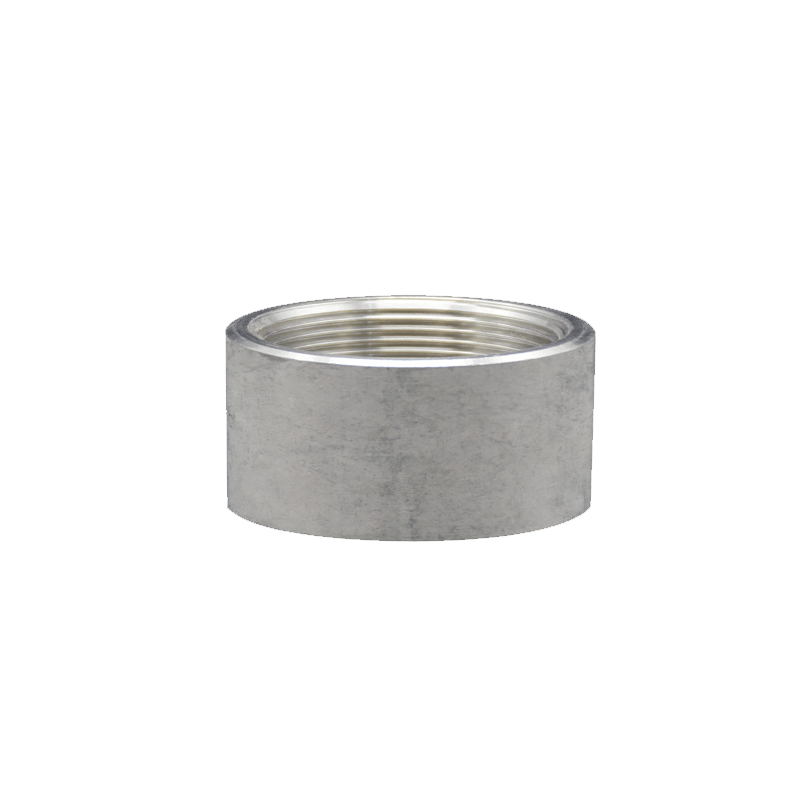

DIN Standard Stainless Steel Half Coupling
SS 304/ SS316 Stainless Steel Half Coupling with Female BSP Thread
LT-37B
FOB
100 pieces
36500pieces / Day
45Day
Quantity:
DIN Standard Stainless Steel Half Coupling
- Size: 1/8”-6”(DN6-DN150)
- End connection: PT, BSP
- Processed from Pipes (Tube)
- Material: 304/316
- Standard: DIN2986, EN10241
- Surface Treatment: Polish & Pickling, Sandblasting.
- OEM is acceptable and manufactures special requirements according to your drawings.
| Certificates: | ISO9001-2015,ISO14001-2015, CE & KC |
| Square: | 6600 M2 |
| Casting: | Investment Casting Foundry-Wax Lost Technology |
| CNC Machine: | 70 Sets (Still updating) |
| Pressure Testing Machine | 4 Sets |

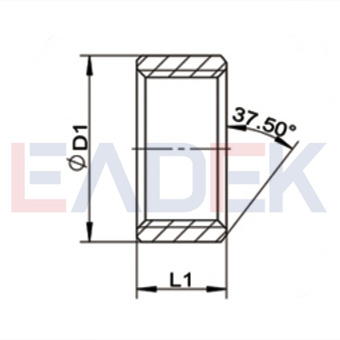

 | Size | DN | D (mm) | L(mm) |
| 1/8" | 6 | 15.0 | 8.0 | |
| 1/4" | 8 | 18.5 | 11.0 | |
| 3/8" | 10 | 21.5 | 12.0 | |
| 1/2" | 15 | 26.5 | 15.0 | |
| 3/4" | 20 | 32.0 | 17.0 | |
| 1" | 25 | 39.5 | 20.0 | |
| 1-1/4" | 32 | 48.5 | 22.0 | |
| 1-1/2" | 40 | 54.5 | 22.0 | |
| 2" | 50 | 66.5 | 26.0 | |
| 2-1/2" | 65 | 82.0 | 30.0 | |
| 3" | 80 | 95.0 | 34.0 | |
| 4" | 100 | 122.0 | 40.0 | |
| 5" | 125 | 147.0 | 44.0 | |
| 6" | 150 | 174.0 | 44.0 |
