What is Stainless Steel Pipe Nipples?

Leadtek Manufacture stainless steel pipe nipples widely used in water, oil, gas media pipeline. The connection end is threaded(PT, Rp, Rc, BSP, NPT, etc)

These Items including Coupling, Barrel Nipple, Welding Nipple, Half Coupling, Round Welding Hose Nipple, Round Hose Nipple Male Thread and so on.

1. All Processed from pipes (Tube)

2. Surface treatment: Pickling, Sandblasting & Polished.

3. Nominal Wall thickness: SCH20S, SCH40S, SCH80, etc.

4. Length: As standard required or according to customer requirements.

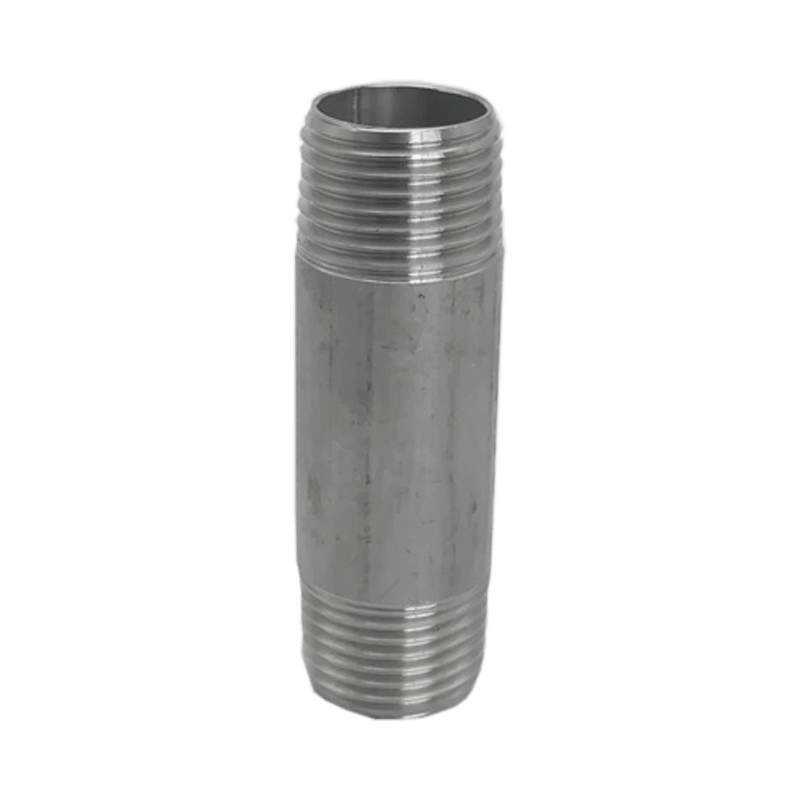

DIN Standard Stainless Steel Barrel Nipple

• Size: 1/8”-6”(DN6-DN150)
• End connection: PT, BSP
• Processed from Pipes (Tube)
• Material: 304/316
• Standard: DIN2982,EN10241
• Surface Treatment: Pickling
• OEM is acceptable and manufactures special requirements according to your drawings.

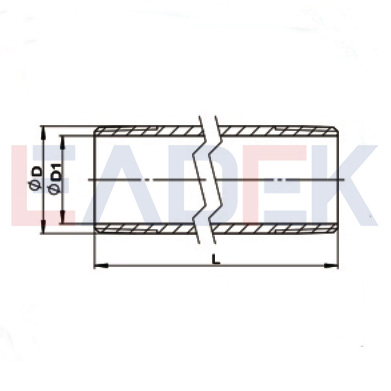

	Size	DN	D (mm)	D1 (mm)	L(mm)
	1/8"	6	10.0	6.0	40,60,80,100,120,150,180,200,250,300
	1/4"	8	14.0	9.0	40,60,80,100,120,150,180,200,250,300
	3/8"	10	17.0	12.0	40,60,80,100,120,150,180,200,250,300
	1/2"	15	21.3	16.3	60,80,100,120,150,180,200,250,300
	3/4"	20	26.7	21.7	60,80,100,120,150,180,200,250,300
	1"	25	33.4	27.4	60,80,100,120,150,180,200,250,300
	1-1/4"	32	42.0	36.0	80,100,120,150,180,200,250,300
	1-1/2"	40	48.0	42.0	80,100,120,150,180,200,250,300
	2"	50	60.0	53.0	100,120,150,180,200,250,300
	2-1/2"	65	76.0	68.0	100,120,150,180,200,250,300
	3"	80	89.0	80.0	120,150,180,200,250,300
	4"	100	114.0	104.0	150,180,200,250,300
	5"	125	140.0	129.0	150,180,200,250,300
	6"	150	165.0	154.0	150,180,200,250,300
