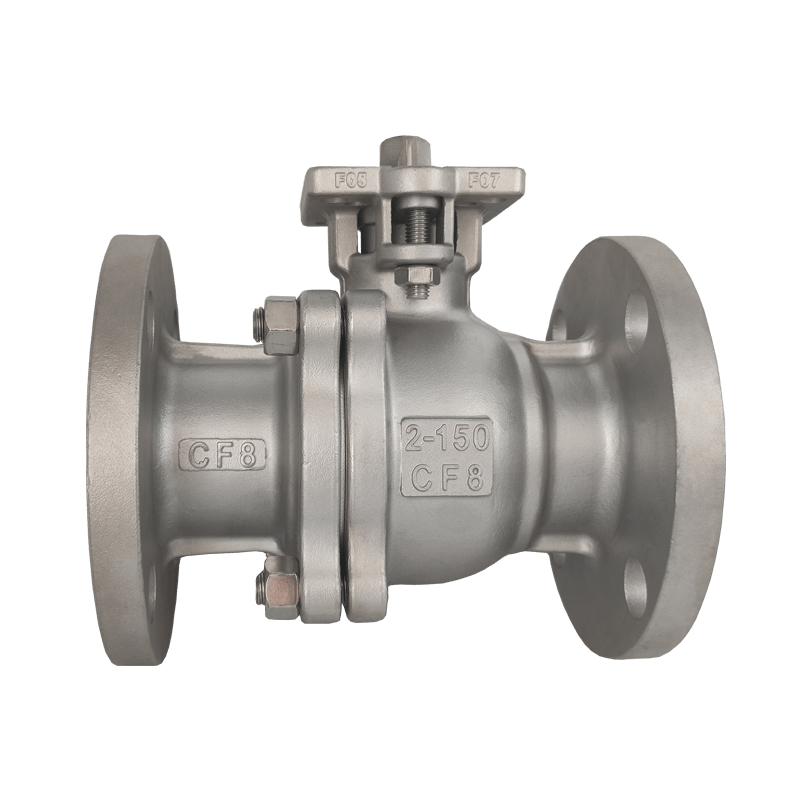

2PC Flanged Ball Valve with New Mounting Pad 150LB
LT-61CM
FOB
5 pieces
200pieces / Day
China
25-30Day
Quantity:
2 Piece Flanged Ball Valve 150LB - High Mounting Pad (ISO5211)
- Item No: LT-61CM
- Full Bore
- Material
| Body, Ball, and Stem | Stainless Steel 304 or 316 |
| Bolts, Nuts, Spring Washer, etc | Stainless Steel 304 |
| Seat Packing | Imported Daikin PTFE (CNC Machined) |

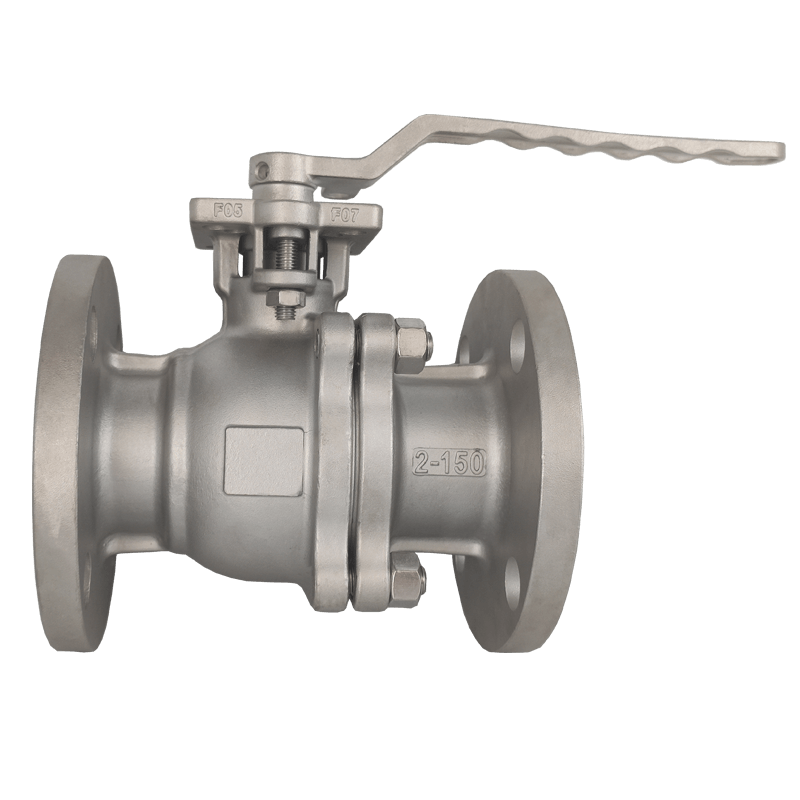

| Handle | As photos show in Stainless Steel 304 or Aluminum Alloy |
- Size: 1/2"to 8"(DN15-DN200)
- Power: Manual Operated/Pneumatic Actuator/Electric Actuator
- Casting process: Investment Casting ( Lost Wax)
- Pressure Rating: 150LB
- Design:API 608
- Test & Inspect: API 598
- Face to Face Dimension: ASME B16.10
- Flange Dimension: ASME B16.5
- Medium: Water, Gasoline, Fuels, Gas, etc.

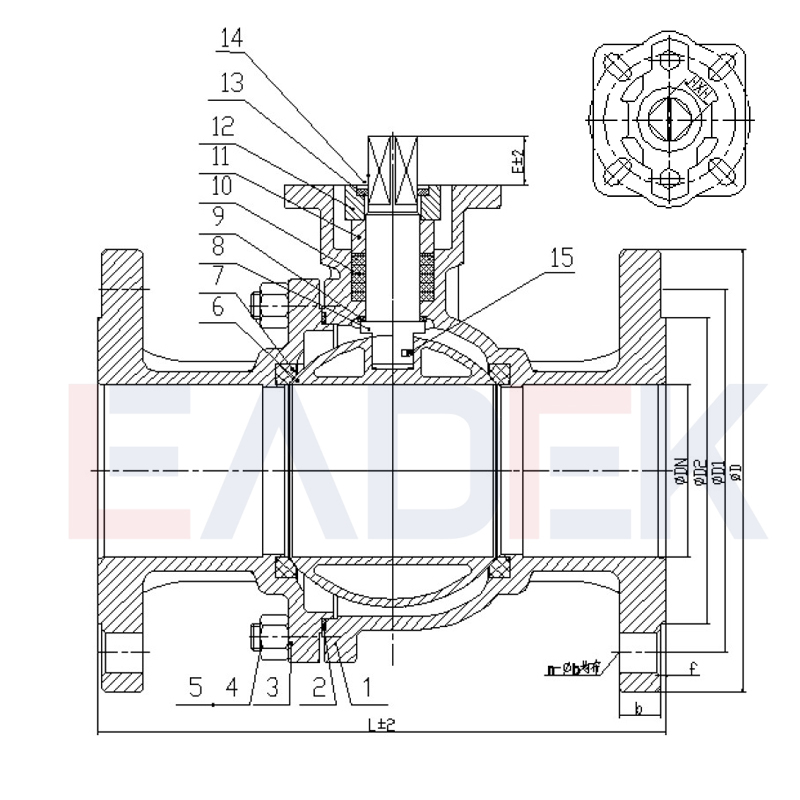

 | NO | Part Name | Material |
| 1 | Body | CF8/CF8M | |
| 2 | Gasket Washer | 304+Graphite | |
| 3 | Cap | CF8/CF8M | |
| 4 | Bolts | Stainless Steel | |
| 5 | Nut | Stainless Steel | |
| 6 | Ball | F304/F316 | |
| 7 | Seat | PTFE/RPTFE | |
| 8 | Thrust Stop | PTFE | |
| 9 | Stem | SS304/SS316 | |
| 10 | Packing | PTFE | |
| 11 | Gland Nut | SS304/SS316 | |
| 12 | Hex Nut | Stainless Steel | |
| 13 | Positioning Pieces | Stainless Steel | |
| 14 | Circlip | Stainless Steel | |
| 15 | Firesafe Device | Stainless Steel |
| Size | L | D | D1 | D2 | f | b | n-Φd | H x H |
| 1/2" | 108 | 90 | 60.3 | 34.9 | 2 | 8 | 4-16 | 9 x 9 |
| 3/4" | 117 | 100 | 69.9 | 42.9 | 2 | 8.9 | 4-16 | 9 x 9 |
| 1" | 127 | 110 | 79.4 | 50.8 | 2 | 9.6 | 4-16 | 11 x 11 |
| 1-1/4" | 140 | 115 | 88.9 | 63.5 | 2 | 11.2 | 4-16 | 11 x 11 |
| 1-1/2" | 165 | 125 | 98.4 | 73 | 2 | 12.7 | 4-16 | 14 x 14 |
| 2" | 178 | 150 | 120.5 | 92 | 2 | 14.3 | 4-19 | 14 x 14 |
| 2-1/2" | 190 | 180 | 139.5 | 105 | 2 | 16 | 4-19 | 17 x 17 |
| 3" | 203 | 190 | 152.5 | 127 | 2 | 17 | 4-19 | 19 x 19 |
| 4" | 229 | 230 | 190.5 | 157 | 2 | 22 | 8-19 | 19 x 19 |
| 6" | 394 | 280 | 241.5 | 216 | 2 | 24 | 8-22 | 27 x 27 |
| 8" | 457 | 345 | 298.5 | 270 | 2 | 27 | 8-22 | 27 x 27 |
